AD5314BRMZ - Analog Devices

Description: AD5314BRMZ, 10 bit-Bit DAC Quad 143ksps, SPI, Microwire, 10-Pin MSOP

Download AD5314BRMZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

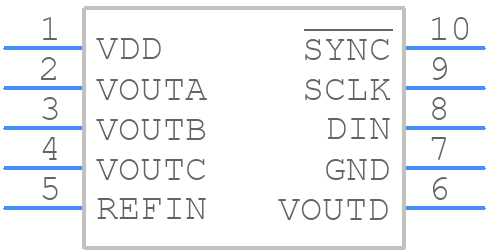

AD5314BRMZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5314BRMZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RM-10
click to zoom
3D Models
AD5314BRMZ - Analog Devices - 3D model - Small Outline Packages - RM-10
click to zoom

AD5314BRMZ Details

  • Manufacturer Part Number:

    AD5314BRMZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    RM-10

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog Output Voltage-Max:

    5.499 V

  • Analog Output Voltage-Min:

    0.001 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.2441%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Settling Time-Max:

    9 µs

  • Settling Time-Nom (tstl):

    7 µs

  • Supply Current-Max:

    0.9 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

AD5314BRMZ Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the sensitive analog signals away from the digital signals. Also, use a low-ESR capacitor for the VREF pin and a 0.1uF capacitor for the AVCC pin.
  • To ensure accuracy, calibrate the device at multiple temperatures, and use a temperature sensor to compensate for temperature-related errors. Also, use a high-precision voltage reference and ensure that the device is operated within its specified operating conditions.
  • The recommended power-up sequence is to apply the analog supply voltage (AVCC) first, followed by the digital supply voltage (DVCC), and then the logic inputs. This ensures that the internal circuitry is properly initialized and prevents damage or incorrect operation.
  • The AD5314BRMZ outputs 16-bit data in a 2's complement format. The recommended data format is to use a 16-bit register to store the output data, with the most significant bit (MSB) representing the sign bit, and the remaining 15 bits representing the magnitude of the output voltage.
  • The recommended method is to use the SYNC pin to synchronize the AD5314BRMZ with an external clock or trigger signal. The SYNC pin can be connected to an external clock or trigger signal, and the device will synchronize its conversion process with the rising edge of the SYNC signal.
