AD5316RBRUZ - Analog Devices

Description: Analog Devices AD5316RBRUZ, 4-channel 10 bit Serial DAC, 16-Pin TSSOP

Download AD5316RBRUZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

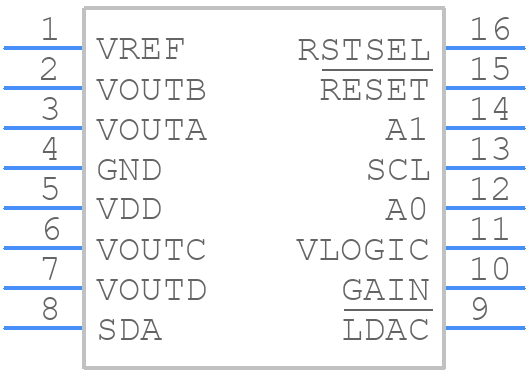

AD5316RBRUZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5316RBRUZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-16 (TSSOP)
click to zoom
3D Models
AD5316RBRUZ - Analog Devices - 3D model - Small Outline Packages - RU-16 (TSSOP)
click to zoom

AD5316RBRUZ Details

  • Manufacturer Part Number:

    AD5316RBRUZ

  • Source Url Status Check Date:

    2013-05-01 14:56:11.982

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RU-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    5.005 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.0488%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Settling Time-Max:

    7 µs

  • Settling Time-Nom (tstl):

    5 µs

  • Supply Current-Max:

    1.3 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

AD5316RBRUZ Frequently Asked Questions (FAQs)

  • It is recommended to follow a star-grounding scheme, with the AD5316RBRUZ placed close to the analog-to-digital converter (ADC) or digital-to-analog converter (DAC) it is connected to. Keep the analog and digital grounds separate, and use a single-point ground connection to minimize noise and crosstalk.
  • To ensure accurate voltage reference output, make sure to decouple the VREF pin with a 10uF capacitor to GND, and use a low-noise, low-impedance power supply. Also, ensure that the input voltage is within the recommended operating range of 2.7V to 5.5V.
  • The recommended output capacitor value is 10uF. This value is chosen to ensure stability and minimize output noise. A larger capacitor value can cause instability, while a smaller value may not provide sufficient noise filtering.
  • The AD5316RBRUZ has a built-in POR and BOR function. To handle these functions, ensure that the power supply is stable and within the recommended operating range. The POR and BOR functions will automatically reset the device in case of a power failure or brown-out condition.
  • The thermal impedance of the AD5316RBRUZ is typically 30°C/W. This means that for every watt of power dissipated, the junction temperature will rise by 30°C. To minimize thermal impedance, ensure good airflow around the device, and use a heat sink if necessary.
