AD5317RBCPZ-RL7 - Analog Devices

Description: Quad, 10-Bit nanoDAC® with 2 ppm/°C Reference, SPI Interface

Download AD5317RBCPZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

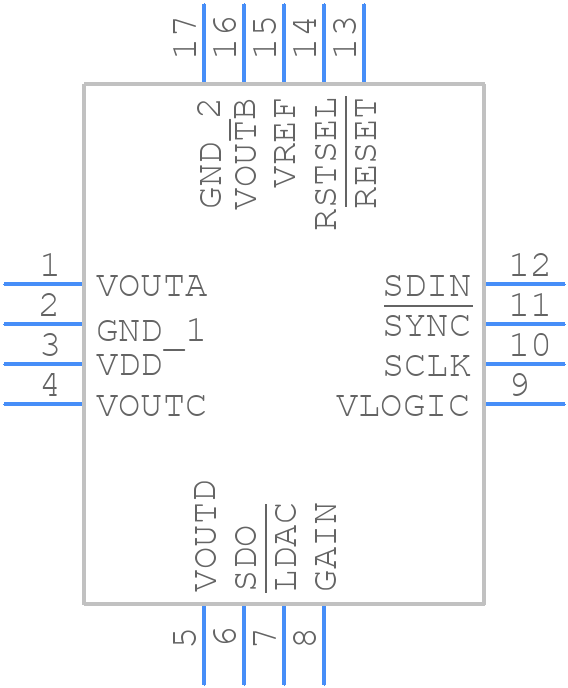

Symbol
AD5317RBCPZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5317RBCPZ-RL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - (CP-16-22)
click to zoom
3D Models
AD5317RBCPZ-RL7 - Analog Devices - 3D model - Quad Flat No-Lead - (CP-16-22)
click to zoom

AD5317RBCPZ-RL7 Details

  • Manufacturer Part Number:

    AD5317RBCPZ-RL7

  • Source Url Status Check Date:

    2013-05-01 14:56:11.993

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-22

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    5.005 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.049%

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Settling Time-Max:

    7 µs

  • Settling Time-Nom (tstl):

    5 µs

  • Supply Current-Max:

    1.3 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

AD5317RBCPZ-RL7 Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the AD5317RBCPZ-RL7 involves keeping the device away from high-frequency noise sources, using a solid ground plane, and placing the device close to the analog-to-digital converter (ADC) or digital-to-analog converter (DAC) it is connected to. Additionally, it is recommended to use a low-ESR capacitor for the VREF pin and to decouple the power supply pins with a 10uF capacitor.
  • To ensure the accuracy and linearity of the AD5317RBCPZ-RL7 over the entire operating temperature range, it is recommended to calibrate the device at multiple temperatures, use a high-accuracy voltage reference, and ensure that the device is operated within its specified temperature range. Additionally, it is recommended to use a thermocouple or thermistor to monitor the device temperature and compensate for any temperature-related errors.
  • The recommended power-up sequence for the AD5317RBCPZ-RL7 involves applying the analog power supply (AVDD) before the digital power supply (DVDD), and ensuring that the voltage on the VREF pin is stable before applying the analog input signal. Additionally, it is recommended to use a power-on reset circuit to ensure that the device is properly reset during power-up.
  • To troubleshoot issues with the AD5317RBCPZ-RL7, it is recommended to check the power supply voltages, ensure that the device is properly configured and calibrated, and verify that the input signals are within the specified range. Additionally, it is recommended to use a logic analyzer or oscilloscope to monitor the device's digital outputs and analog inputs, and to consult the device's datasheet and application notes for troubleshooting guidance.
  • The recommended PCB design and layout considerations for the AD5317RBCPZ-RL7 involve using a multilayer PCB with a solid ground plane, separating analog and digital signals, and using shielded cables or twisted pairs for analog signals. Additionally, it is recommended to use a common-mode filter or ferrite bead to reduce EMI, and to ensure that the device is placed away from high-frequency noise sources.
