AD5318ARUZ-REEL7 - Analog Devices

Description: Digital to Analog Converters - DAC OCTAL 10 BIT SPI MICROPOWER DAC IC

Download AD5318ARUZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

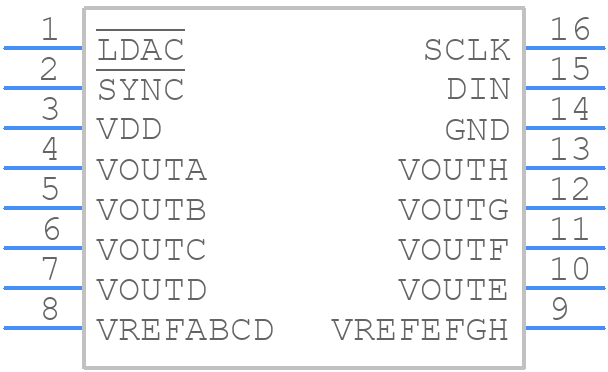

AD5318ARUZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5318ARUZ-REEL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-16 (TSSOP)
click to zoom
3D Models
AD5318ARUZ-REEL7 - Analog Devices - 3D model - Small Outline Packages - RU-16 (TSSOP)
click to zoom

AD5318ARUZ-REEL7 Details

  • Manufacturer Part Number:

    AD5318ARUZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    ROHS COMPLIANT, MO-153AB, TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RU-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    5.499 V

  • Analog Output Voltage-Min:

    0.001 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.3906%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Settling Time-Max:

    9 µs

  • Settling Time-Nom (tstl):

    7 µs

  • Supply Current-Max:

    1.8 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

AD5318ARUZ-REEL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD5318ARUZ-REEL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure the accuracy of the AD5318ARUZ-REEL7's output voltage, it's essential to use a high-precision voltage reference, such as the ADR421 or ADR4525, and to minimize noise and interference on the input lines. Additionally, the output voltage should be filtered using a low-pass filter to reduce noise and ripple.
  • The maximum output current of the AD5318ARUZ-REEL7 is 10mA. Exceeding this limit can cause the device to overheat, leading to reduced performance and accuracy. It's essential to ensure that the output current is within the specified limit to maintain the device's performance and reliability.
  • To program the AD5318ARUZ-REEL7's output voltage using the SPI interface, you need to send a 16-bit command word to the device. The command word consists of a 4-bit command code, a 6-bit voltage code, and 6 bits of don't-care. The voltage code is calculated based on the desired output voltage and the device's voltage range.
  • The power-on reset (POR) timing of the AD5318ARUZ-REEL7 is approximately 2ms. During this time, the device's output is held in a high-impedance state, and the internal registers are reset to their default values. After the POR timing, the device is ready to accept SPI commands and output the programmed voltage.
