AD5323ARUZ - Analog Devices

Description: AD5323ARUZ, 12 bit-Bit DAC Dual, 125ksps, SPI, Microwire, 16-Pin TSSOP

Download AD5323ARUZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

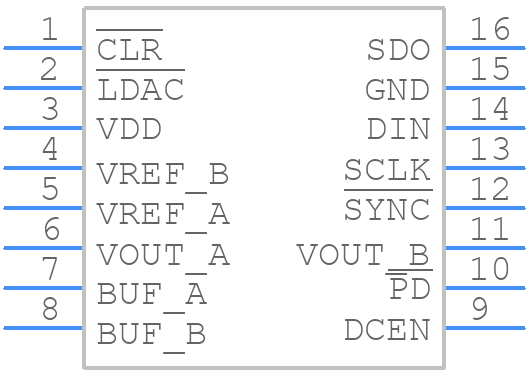

Symbol
AD5323ARUZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5323ARUZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-16 (TSSOP)
click to zoom
3D Models
AD5323ARUZ - Analog Devices - 3D model - Small Outline Packages - RU-16 (TSSOP)
click to zoom

AD5323ARUZ Details

  • Manufacturer Part Number:

    AD5323ARUZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    ROHS COMPLIANT, MO-153AB, TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RU-16

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Output Voltage-Max:

    5.499 V

  • Analog Output Voltage-Min:

    0.001 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.3906%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Settling Time-Max:

    10 µs

  • Settling Time-Nom (tstl):

    8 µs

  • Supply Current-Max:

    0.45 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

AD5323ARUZ Frequently Asked Questions (FAQs)

  • A good layout and routing practice for the AD5323ARUZ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the DAC output and the load. Additionally, it's recommended to use a low-pass filter to reduce high-frequency noise and to decouple the power supply pins with capacitors.
  • The AD5323ARUZ requires a one-time calibration process to ensure accurate performance. This involves writing the calibration data to the device's internal registers. The calibration process is typically done using a microcontroller or a dedicated calibration tool. The device's datasheet and application notes provide detailed information on the calibration process and the required calibration data.
  • The maximum output current of the AD5323ARUZ is 5 mA per channel. The device's power consumption is dependent on the output current and the supply voltage. At maximum output current, the device's power consumption is approximately 15 mW per channel. However, the power consumption can be reduced by limiting the output current or by using a lower supply voltage.
  • The AD5323ARUZ has built-in overvoltage and undervoltage protection on the output pins. If the output voltage exceeds the specified range, the device will limit the output current to prevent damage. Additionally, the device has a fault detection feature that can be used to detect overvoltage or undervoltage conditions and generate an interrupt signal to the microcontroller.
  • The typical settling time of the AD5323ARUZ is 10 μs. The settling time is the time it takes for the output voltage to settle within 1 LSB of the final value after a code change. The settling time affects the device's performance in applications that require fast output voltage changes, such as in audio or signal processing applications.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD5323ARUZ Overview

Use the download button to access the AD5323ARUZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD532, or try a keyword search, such as Digital to Analog Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
