AD5323BRUZ - Analog Devices

Description: AD5323BRUZ, 12 bit-Bit DAC Dual, 125ksps, SPI, Microwire, 16-Pin TSSOP

Download AD5323BRUZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

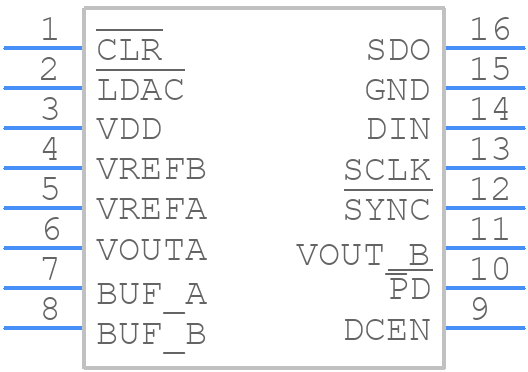

AD5323BRUZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5323BRUZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16 PIN TSSOP
click to zoom
3D Models
AD5323BRUZ - Analog Devices - 3D model - Small Outline Packages - 16 PIN TSSOP
click to zoom

AD5323BRUZ Details

  • Manufacturer Part Number:

    AD5323BRUZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    ROHS COMPLIANT, MO-153AB, TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RU-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Output Voltage-Max:

    5.499 V

  • Analog Output Voltage-Min:

    0.001 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.1953%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Settling Time-Nom (tstl):

    8 µs

  • Supply Current-Max:

    0.4 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

AD5323BRUZ Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the sensitive analog signals away from the digital signals. Also, use short and direct traces for the analog inputs and outputs, and avoid crossing digital signals over the analog signals.
  • To ensure accuracy and linearity, it's essential to follow the recommended calibration procedure outlined in the datasheet. Additionally, consider using a temperature sensor to monitor the device temperature and adjust the calibration accordingly. Also, ensure that the device is operated within the recommended operating temperature range.
  • Potential sources of noise and interference include electromagnetic interference (EMI), radio-frequency interference (RFI), and power supply noise. To mitigate these effects, use shielding, filtering, and decoupling capacitors, and ensure a clean and stable power supply. Also, consider using a Faraday cage or a shielded enclosure to reduce EMI and RFI.
  • To troubleshoot and debug issues, start by verifying the power supply voltage and ensuring that it's within the recommended range. Check the input signals and ensure they are within the specified range. Use an oscilloscope to monitor the output signals and verify that they are correct. Also, check the device's temperature and ensure it's within the recommended operating range. If the issue persists, consult the datasheet and application notes for guidance.
  • Thermal management is critical for reliable operation. Ensure good airflow around the device, and consider using a heat sink or thermal interface material to reduce thermal resistance. Monitor the device temperature and adjust the calibration accordingly. Also, ensure that the device is operated within the recommended operating temperature range.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD5323BRUZ Overview

Use the download button to access the AD5323BRUZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD532, or try a keyword search, such as Digital to Analog Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
