AD5324BCPZ-REEL7 footprint, schematic symbol and 3D model by Analog Devices

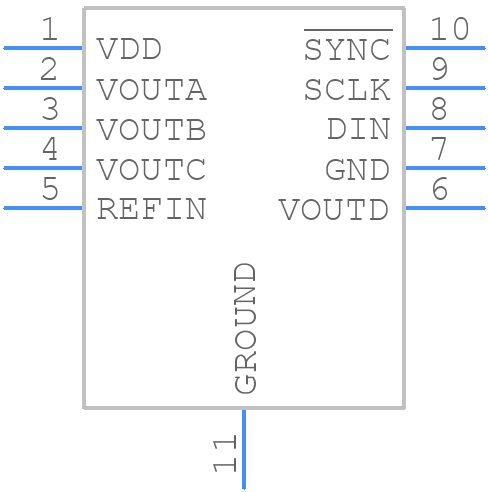

Symbol

click to zoom

PCB Footprints

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for AD5324BCPZ-REEL7
Part Number AD5324BCPZ-REEL7
Manufacturer Analog Devices
Pin Count 11
Part Category Integrated Circuit
Package Category Small Outline No-lead
Footprint Name Small Outline No-lead - CP-10-9_2026-1.15
Released Date Jul 30, 2026
Last Modified Date Jul 30, 2026 3:31 AM UTC
Pinout / Pin List Click Here (Member Only)

AD5324BCPZ-REEL7 Details

Manufacturer Part Number:
AD5324BCPZ-REEL7
Brand Name:
Analog Devices Inc
Pbfree Code:
No
Rohs Code:
Yes
Part Life Cycle Code:
Active
Part Package Code:
SOIC
Package Description:
LFCSP-10
Pin Count:
10
Manufacturer Package Code:
CP-10-9
Country Of Origin:
South Korea
ECCN Code:
EAR99
HTS Code:
8542.39.00.01
Manufacturer:
Analog Devices Inc
YTEOL:
9
Analog Output Voltage-Max:
5.499 V
Analog Output Voltage-Min:
0.001 V
Converter Type:
D/A CONVERTER
Input Bit Code:
BINARY
Input Format:
SERIAL
JESD-30 Code:
S-PDSO-N10
JESD-609 Code:
e3
Length:
3 mm
Linearity Error-Max (EL):
0.2441%
Moisture Sensitivity Level:
3
Number of Bits:
12
Number of Functions:
1
Number of Terminals:
10
Operating Temperature-Max:
105 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
HVSON
Package Equivalence Code:
SOLCC10,.11,20
Package Shape:
SQUARE
Package Style:
SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
0.85 mm
Settling Time-Max:
10 µs
Settling Time-Nom (tstl):
8 µs
Supply Current-Max:
0.9 mA
Supply Voltage-Nom:
3 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Matte Tin (Sn) - annealed
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
3 mm

AD5324BCPZ-REEL7 Frequently Asked Questions (FAQs)

Analog Devices provides a recommended PCB layout in the AD5324 evaluation board documentation, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
The AD5324BCPZ-REEL7 requires a two-point calibration to achieve the highest accuracy. The calibration process involves applying a known input voltage and adjusting the internal gain and offset registers to achieve the desired output voltage. The calibration procedure is outlined in the AD5324 datasheet and application notes.
The maximum output current of the AD5324BCPZ-REEL7 is 10 mA. If the output current exceeds this limit, the output voltage may droop or become unstable. To ensure stable operation, it is recommended to keep the output current below 5 mA.
The AD5324BCPZ-REEL7 has built-in overvoltage and undervoltage protection. If the input voltage exceeds the maximum rating, the device will enter a high-impedance state to protect itself from damage. Similarly, if the input voltage falls below the minimum rating, the device will enter a low-power state to conserve power.
The AD5324BCPZ-REEL7 is designed to operate within a specified temperature range. To ensure reliable operation, it is recommended to provide adequate thermal management, such as heat sinking or airflow, to keep the device temperature within the specified range. Excessive temperature can affect the device's reliability and accuracy.
