AD5324BRMZ-REEL7 - Analog Devices

Description: 2.5 V to 5.5 V, 500 ?A Quad Voltage Output 12-Bit DAC in 10-Lead Packages

Download AD5324BRMZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

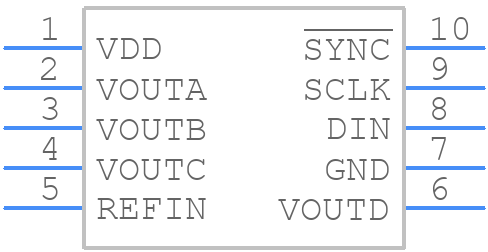

Symbol
AD5324BRMZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5324BRMZ-REEL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RM-10
click to zoom

AD5324BRMZ-REEL7 Details

  • Manufacturer Part Number:

    AD5324BRMZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    RM-10

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Output Voltage-Max:

    5.499 V

  • Analog Output Voltage-Min:

    0.001 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.2441%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Settling Time-Max:

    10 µs

  • Settling Time-Nom (tstl):

    8 µs

  • Supply Current-Max:

    0.9 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

AD5324BRMZ-REEL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD5324BRMZ-REEL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure the accuracy of the AD5324BRMZ-REEL7's output voltage, it's essential to use a high-precision voltage reference, such as the ADR421 or ADR4525, and to minimize noise and interference on the input and output lines. Additionally, the device should be operated within its specified temperature range and power supply voltage.
  • The maximum output current of the AD5324BRMZ-REEL7 is 10mA. Exceeding this limit can cause the device to overheat, leading to reduced accuracy and reliability. To avoid this, ensure that the output current is within the specified limit, and consider using an external buffer amplifier if higher output currents are required.
  • The AD5324BRMZ-REEL7 can be interfaced with a microcontroller or FPGA using a standard SPI interface. The device requires a 3-wire interface (SCLK, SDIN, and SDO) and operates at a maximum clock frequency of 50MHz. Ensure that the microcontroller or FPGA is configured to operate at a compatible clock frequency and that the interface signals are properly terminated.
  • The AD5324BRMZ-REEL7 has a maximum junction temperature of 150°C. To ensure reliable operation, it's essential to provide adequate heat sinking and thermal management. This can be achieved by using a heat sink, thermal interface material, and ensuring good airflow around the device.
