- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for AD5324SRMZ-EP-RL7
- Part Number AD5324SRMZ-EP-RL7
- Manufacturer Analog Devices
- Pin Count 10
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - RM-10
- Released Date Jan 11, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
AD5324SRMZ-EP-RL7 Details
-
Manufacturer Part Number:
AD5324SRMZ-EP-RL7
-
Brand Name:
Analog Devices Inc
-
Pbfree Code:
No
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
TSSOP
-
Package Description:
MO-187BA, MSOP-10
-
Pin Count:
10
-
Manufacturer Package Code:
RM-10
-
Country Of Origin:
Taiwan
-
ECCN Code:
3A001.A.2.C
-
HTS Code:
8542.39.00.01
AD5324SRMZ-EP-RL7 Frequently Asked Questions (FAQs)
-
A good PCB layout for the AD5324SRMZ-EP-RL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing noise coupling between the analog and digital sections. A 4-layer PCB with a dedicated analog ground plane is recommended.
-
To ensure accurate voltage reference performance, it's essential to decouple the VREF pin with a 10uF capacitor to GND, and use a low-noise, low-impedance voltage source for the VCC pin. Additionally, keep the voltage reference input pin (VIN) away from noisy digital signals.
-
The recommended power-up sequence is to apply VCC first, followed by the voltage reference input (VIN). This ensures that the internal voltage regulator is powered up before the analog circuitry.
-
To minimize digital noise coupling, use a separate analog ground plane, keep digital signals away from the analog section, and use shielding or guard rings around the analog signals. Additionally, use a low-noise, low-impedance voltage source for the VCC pin.
-
The maximum allowed capacitance on the VOUT pin is 10nF. Exceeding this value may cause instability or oscillations in the output stage.
Trust Checks
System Verified
AD5324SRMZ-EP-RL7 Overview

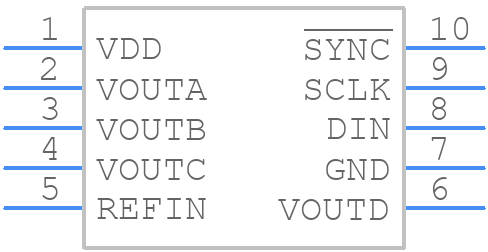

Use the download button to access the AD5324SRMZ-EP-RL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD532,
or try a keyword search, such as Digital to Analog Converters
