AD5326BRUZ-REEL - Analog Devices

Description: Digital to Analog Converters - DAC IC 12-BIT QUAD I2C

Download AD5326BRUZ-REEL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

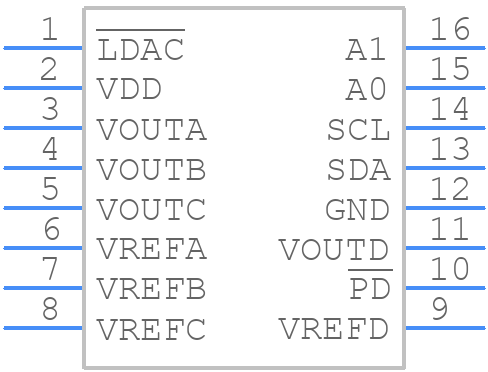

Symbol
AD5326BRUZ-REEL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5326BRUZ-REEL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-16 (TSSOP)
click to zoom
3D Models
AD5326BRUZ-REEL - Analog Devices - 3D model - Small Outline Packages - RU-16 (TSSOP)
click to zoom

AD5326BRUZ-REEL Details

  • Manufacturer Part Number:

    AD5326BRUZ-REEL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Package Description:

    LEAD FREE, MO-153-AB, TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RU-16

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Analog Output Voltage-Max:

    5.499 V

  • Analog Output Voltage-Min:

    0.001 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.2441%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Settling Time-Max:

    10 µs

  • Settling Time-Nom (tstl):

    8 µs

  • Supply Current-Max:

    0.9 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

AD5326BRUZ-REEL Frequently Asked Questions (FAQs)

  • The recommended layout and routing for the AD5326BRUZ-REEL involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the device and the power supply. Additionally, it is recommended to use a 4-layer PCB with a dedicated analog layer to reduce noise and crosstalk.
  • To ensure the accuracy and linearity of the AD5326BRUZ-REEL over the entire operating temperature range, it is recommended to calibrate the device at multiple temperatures, use a high-quality voltage reference, and ensure that the device is operated within its specified operating conditions. Additionally, the device's internal calibration feature can be used to compensate for temperature-related errors.
  • The recommended power-up sequence for the AD5326BRUZ-REEL involves powering up the analog supply (VCC) before the digital supply (VDD), and ensuring that the voltage on the VCC pin is stable before applying a clock signal to the device. This sequence helps to prevent damage or malfunction due to incorrect power-up sequencing.
  • The AD5326BRUZ-REEL can be interfaced with a microcontroller or FPGA using a serial interface such as SPI or I2C. The recommended communication protocol is SPI, which is the default protocol for the device. The device's datasheet provides detailed information on the communication protocol and timing requirements.
  • The AD5326BRUZ-REEL has a maximum junction temperature of 150°C, and it is recommended to ensure that the device is operated within its specified thermal operating conditions. Thermal management considerations include using a heat sink, ensuring good airflow, and minimizing the power dissipation of the device. Additionally, the device's thermal shutdown feature can be used to prevent damage due to overheating.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD5326BRUZ-REEL Overview

Use the download button to access the AD5326BRUZ-REEL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD532, or try a keyword search, such as Digital to Analog Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
