AD5328ARUZ - Analog Devices

Description: AD5328ARUZ, 12 bit-Bit DAC 8-channel 167ksps, SPI, Microwire, 16-Pin TSSOP

Download AD5328ARUZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

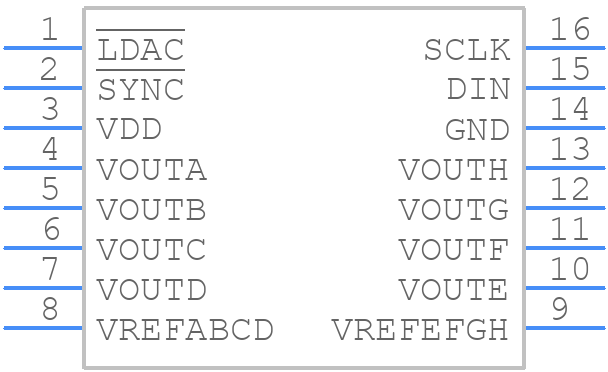

AD5328ARUZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5328ARUZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16 PIN TSSOP
click to zoom
3D Models
AD5328ARUZ - Analog Devices - 3D model - Small Outline Packages - 16 PIN TSSOP
click to zoom

AD5328ARUZ Details

  • Manufacturer Part Number:

    AD5328ARUZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    ROHS COMPLIANT, MO-153AB, TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RU-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    5.499 V

  • Analog Output Voltage-Min:

    0.001 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.3906%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Settling Time-Max:

    10 µs

  • Settling Time-Nom (tstl):

    8 µs

  • Supply Current-Max:

    1.8 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

AD5328ARUZ Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the sensitive analog signals away from the digital signals. Also, use short and direct traces for the analog inputs and outputs, and avoid crossing digital signals over the analog signals.
  • To ensure accuracy and linearity, it's essential to follow the recommended calibration procedure, use a high-quality voltage reference, and ensure that the device is operated within the specified temperature range. Additionally, consider using a temperature compensation circuit or a thermistor to compensate for temperature-related errors.
  • Use a low-noise, well-regulated power supply with a high power supply rejection ratio (PSRR). Decouple the power supply lines with a 10uF capacitor and a 100nF capacitor in parallel. Also, use a separate analog and digital power supply, and ensure that the power supply lines are not routed near sensitive analog signals.
  • Use a compatible digital interface standard (e.g., SPI, I2C, or parallel) and ensure that the microcontroller or FPGA can handle the data transfer rate and protocol. Use a level translator or a buffer if necessary, and ensure that the digital signals are properly terminated and routed to minimize noise and reflections.
  • Use a shielded enclosure, and ensure that the device is properly grounded. Use a common-mode choke or a ferrite bead to filter out high-frequency noise, and avoid routing sensitive analog signals near the device's digital pins. Also, follow good PCB design practices, such as using a solid ground plane and minimizing loop areas.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD5328ARUZ Overview

Use the download button to access the AD5328ARUZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD532, or try a keyword search, such as Digital to Analog Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
