AD532KHZ - Analog Devices

Description: Special Purpose Amplifiers MULITPLIER/DIVIDER IC

Download AD532KHZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

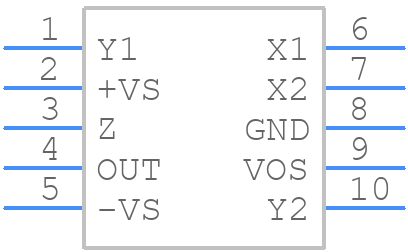

Symbol
AD532KHZ - Analog Devices - PCB symbol
click to zoom

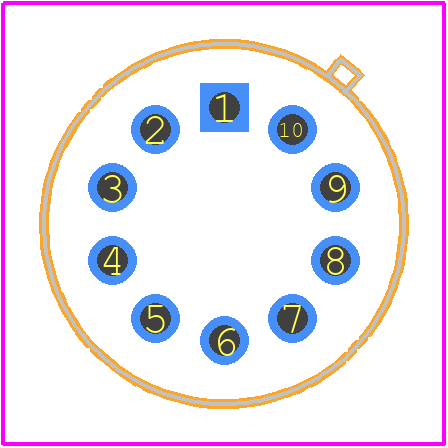

PCB Footprints
AD532KHZ - Analog Devices PCB footprint - Other - Other - AD534KHZ
click to zoom

AD532KHZ Details

  • Manufacturer Part Number:

    AD532KHZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    BCY

  • Package Description:

    TO-100, 10 PIN

  • Pin Count:

    10

  • Manufacturer Package Code:

    H-10-1

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Analog IC - Other Type:

    ANALOG MULTIPLIER OR DIVIDER

  • Bandwidth-Nom:

    1 MHz

  • JESD-30 Code:

    O-MBCY-W10

  • JESD-609 Code:

    e4

  • Neg Supply Voltage-Max (Vsup):

    -18 V

  • Neg Supply Voltage-Min (Vsup):

    -10 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Negative Input Voltage-Max:

    -10 V

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    METAL

  • Package Code:

    TO-100

  • Package Equivalence Code:

    CAN10,.23

  • Package Shape:

    ROUND

  • Package Style:

    CYLINDRICAL

  • Positive Input Voltage-Max:

    10 V

  • Qualification Status:

    Not Qualified

  • Supply Current-Max (Isup):

    6 mA

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    10 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Gold (Au)

  • Terminal Form:

    WIRE

  • Terminal Position:

    BOTTOM

AD532KHZ Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VCC first, followed by AVCC, and then the digital inputs. This ensures that the internal voltage regulators are powered up correctly and minimizes the risk of latch-up or damage to the device.
  • To optimize the layout for high-frequency operation, it is recommended to keep the analog and digital signal paths separate, use short and direct connections, and avoid crossing analog and digital signals. Additionally, use a solid ground plane and decouple the power supplies with high-frequency capacitors.
  • The maximum output current of the AD532KHZ is 20mA per channel. However, it is recommended to limit the output current to 10mA per channel to ensure reliable operation and minimize the risk of overheating.
  • The AD532KHZ has a built-in calibration circuit that allows for self-calibration. To calibrate the device, apply a full-scale input voltage and then toggle the CAL pin high and low. The device will then perform a self-calibration routine and store the calibration data in its internal registers.
  • The AD532KHZ is specified to operate over a temperature range of -40°C to +125°C. Over this range, the device's performance may vary, with changes in gain, offset, and linearity. However, the device is designed to maintain its accuracy and stability over the entire temperature range.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD532KHZ Overview

Use the download button to access the AD532KHZ schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like AD532, or try a keyword search, such as Analog Computational Functions

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
