AD5331BRU - Analog Devices

Description: IC DAC 10BIT SNGL VOUT 20TSSOP

Download AD5331BRU Model

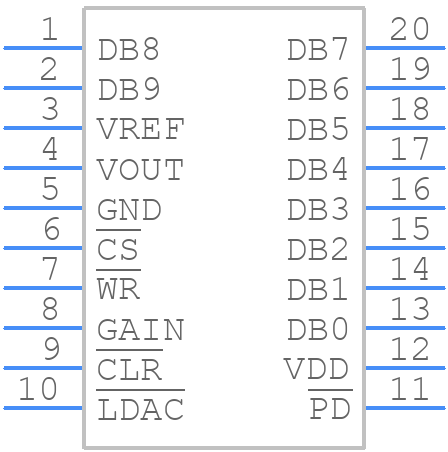

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
AD5331BRU - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-20 (TSSOP)
click to zoom
3D Models
AD5331BRU - Analog Devices  - 3D model - Small Outline Packages - RU-20 (TSSOP)
click to zoom

AD5331BRU Details

  • Manufacturer Part Number:

    AD5331BRU

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Package Description:

    PLASTIC, TSSOP-20

  • Pin Count:

    20

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    PARALLEL, WORD

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e0

  • Length:

    6.5 mm

  • Linearity Error-Max (EL):

    0.29%

  • Number of Bits:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    SSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Settling Time-Max:

    9 µs

  • Settling Time-Nom (tstl):

    7 µs

  • Supply Current-Max:

    0.25 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

AD5331BRU Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by VREF, and then the digital inputs. This ensures that the internal circuitry is properly biased and configured before the digital inputs are applied.
  • To ensure accurate voltage output, it is essential to use a low-noise, low-impedance voltage reference (VREF) and to decouple the VREF pin with a capacitor to reduce noise. Additionally, the output voltage should be buffered with an op-amp if it needs to drive a load.
  • The AD5331BRU can drive a maximum capacitive load of 100 nF. Exceeding this limit may cause instability or oscillations in the output voltage.
  • To minimize power consumption, the AD5331BRU should be operated at the lowest possible supply voltage (VDD) and the output voltage should be set to the minimum required value. Additionally, the shutdown pin (SD) can be used to power down the device when not in use.
  • The thermal shutdown temperature of the AD5331BRU is typically around 150°C. If the junction temperature exceeds this value, the device will shut down to prevent damage.
