AD5340BRUZ - Analog Devices

Description: AD5340BRUZ, 12 bit-Bit DAC 125ksps, Parallel, 24-Pin TSSOP

Download AD5340BRUZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

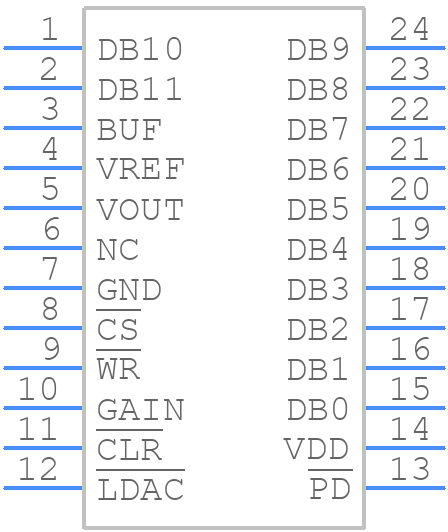

Symbol
AD5340BRUZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5340BRUZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-24 (TSSOP)
click to zoom
3D Models
AD5340BRUZ - Analog Devices - 3D model - Small Outline Packages - RU-24 (TSSOP)
click to zoom

AD5340BRUZ Details

  • Manufacturer Part Number:

    AD5340BRUZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    PLASTIC, TSSOP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    RU-24

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    PARALLEL, WORD

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    7.8 mm

  • Linearity Error-Max (EL):

    0.29%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP24,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Settling Time-Max:

    10 µs

  • Settling Time-Nom (tstl):

    8 µs

  • Supply Current-Max:

    0.25 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

AD5340BRUZ Frequently Asked Questions (FAQs)

  • It is recommended to follow a star-grounding scheme, keeping the analog and digital grounds separate, and placing the AD5340BRUZ close to the analog-to-digital converter (ADC) or digital-to-analog converter (DAC) it is connected to. Additionally, ensure that the power supply lines are decoupled with capacitors and that the layout is symmetrical to reduce noise and electromagnetic interference (EMI).
  • The AD5340BRUZ has an internal calibration circuit that can be enabled by applying a specific voltage sequence to the CAL pin. Refer to the datasheet for the calibration sequence and ensure that the calibration is performed after power-up and before taking measurements. It is also recommended to perform a system calibration to account for any system-level errors.
  • The recommended power-up sequence is to apply the analog power supply (VCC) first, followed by the digital power supply (VDD). Ensure that the power supplies are stable and within the recommended operating range before applying the input signals. Also, ensure that the input signals are within the specified range to prevent damage or incorrect operation.
  • The AD5340BRUZ outputs 16-bit data, which can be read through the SPI interface. Ensure that the microcontroller or digital system reading the data is properly configured to handle the 16-bit data and that the data is properly aligned and formatted. Also, consider implementing error detection and correction mechanisms to ensure data integrity.
  • The AD5340BRUZ has a specified operating temperature range of -40°C to 125°C. Ensure that the device is properly heat-sinked and that the thermal design is optimized to prevent overheating. Also, consider the thermal coefficient of the device and ensure that the system is designed to operate within the specified temperature range.
