AD5346BRUZ - Analog Devices

Description: AD5346BRUZ, 8 bit-Bit DAC 8-channel 167ksps, Parallel, 38-Pin TSSOP

Download AD5346BRUZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

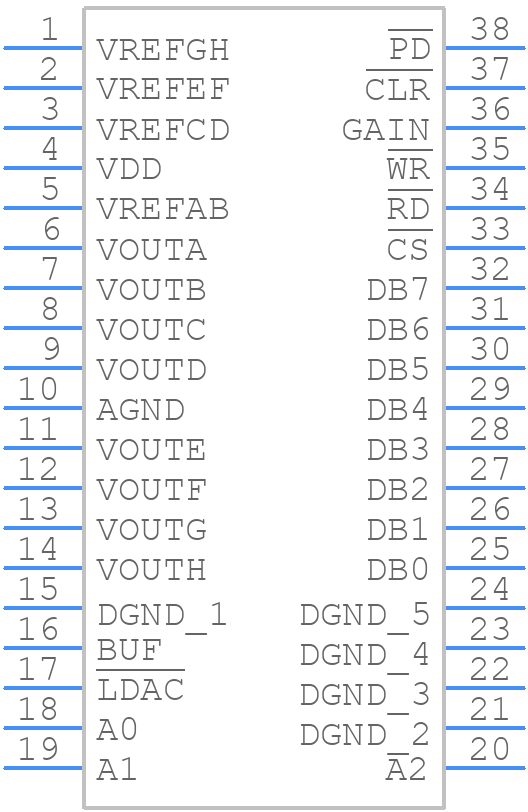

Symbol
AD5346BRUZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5346BRUZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-38 (TSSOP)
click to zoom
3D Models
AD5346BRUZ - Analog Devices - 3D model - Small Outline Packages - RU-38 (TSSOP)
click to zoom

AD5346BRUZ Details

  • Manufacturer Part Number:

    AD5346BRUZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    ROHS COMPLIANT, MO-153BD-1, TSSOP-38

  • Pin Count:

    38

  • Manufacturer Package Code:

    RU-38

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    5.499 V

  • Analog Output Voltage-Min:

    0.001 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    PARALLEL, 8 BITS

  • JESD-30 Code:

    R-PDSO-G38

  • JESD-609 Code:

    e3

  • Length:

    9.7 mm

  • Linearity Error-Max (EL):

    0.3906%

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    38

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Settling Time-Nom (tstl):

    6 µs

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

AD5346BRUZ Frequently Asked Questions (FAQs)

  • The AD5346BRUZ is a high-precision, high-speed amplifier, and as such, it requires careful layout and placement to minimize noise and ensure optimal performance. It is recommended to keep the input and output traces as short as possible, and to use a solid ground plane to reduce noise. Additionally, it is recommended to place the amplifier close to the signal source and to use shielding to reduce electromagnetic interference (EMI).
  • To ensure the stability of the AD5346BRUZ, it is recommended to follow the guidelines outlined in the datasheet for compensation and stabilization. This includes selecting the correct compensation capacitor values, ensuring that the amplifier is operated within its specified frequency range, and avoiding oscillations by using a sufficient amount of decoupling capacitance.
  • The maximum power dissipation of the AD5346BRUZ is 1.4W. To ensure that it does not overheat, it is recommended to provide adequate heat sinking, such as a heat sink or a thermal pad, and to ensure good airflow around the device. Additionally, it is recommended to operate the amplifier within its specified temperature range and to avoid excessive power supply voltages.
  • To troubleshoot common issues with the AD5346BRUZ, it is recommended to follow a systematic approach, starting with a review of the circuit design and layout. Check for proper compensation, decoupling, and power supply bypassing. Use oscilloscopes and other diagnostic tools to identify the source of the issue, and consult the datasheet and application notes for guidance.
  • When designing a PCB for the AD5346BRUZ, key considerations include keeping the input and output traces as short as possible, using a solid ground plane, and providing adequate decoupling and power supply bypassing. Additionally, it is recommended to use a multi-layer PCB with a dedicated ground plane, and to avoid routing sensitive signals near the amplifier.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD5346BRUZ Overview

Use the download button to access the AD5346BRUZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD534, or try a keyword search, such as Digital to Analog Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
