AD5347BRUZ - Analog Devices

Description: AD5347BRUZ, 10 bit-Bit DAC 8-channel 143ksps, Parallel, 38-Pin TSSOP

Download AD5347BRUZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

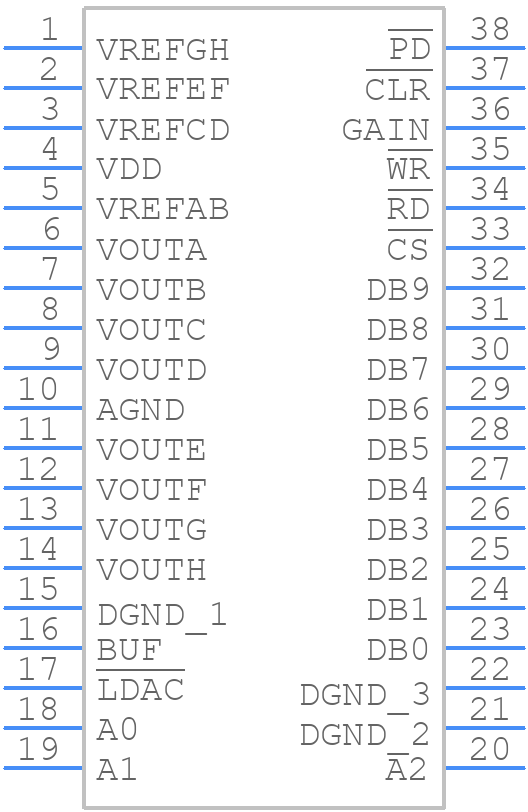

AD5347BRUZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5347BRUZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-38 (TSSOP)
click to zoom
3D Models
AD5347BRUZ - Analog Devices - 3D model - Small Outline Packages - RU-38 (TSSOP)
click to zoom

AD5347BRUZ Details

  • Manufacturer Part Number:

    AD5347BRUZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    MO-153BD-1, TSSOP-38

  • Pin Count:

    38

  • Manufacturer Package Code:

    RU-38

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    5.499 V

  • Analog Output Voltage-Min:

    0.001 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    PARALLEL, WORD

  • JESD-30 Code:

    R-PDSO-G38

  • JESD-609 Code:

    e3

  • Length:

    9.7 mm

  • Linearity Error-Max (EL):

    0.3906%

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    38

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Settling Time-Nom (tstl):

    7 µs

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

AD5347BRUZ Frequently Asked Questions (FAQs)

  • It is recommended to follow a star-grounding scheme, keeping the analog and digital grounds separate, and placing the device close to the analog signal sources. Additionally, ensure that the device is placed away from high-frequency noise sources and that the PCB layout is designed to minimize electromagnetic interference (EMI).
  • The AD5347BRUZ has an internal calibration circuit that allows for self-calibration. To ensure proper calibration, follow the recommended calibration procedure outlined in the datasheet, which involves applying a specific voltage sequence to the device. Additionally, it is recommended to perform calibration at power-up and after any changes to the device's configuration.
  • The AD5347BRUZ has a maximum junction temperature of 150°C. To ensure reliable operation, it is recommended to provide adequate heat sinking, such as a thermal pad or heat sink, and to maintain a maximum ambient temperature of 85°C. Additionally, ensure that the device is operated within the recommended operating temperature range of -40°C to 125°C.
  • Handle the AD5347BRUZ with anti-static wrist straps, mats, or other ESD protection devices. Store the device in its original packaging or in a conductive bag to prevent ESD damage. Avoid touching the device's pins or exposing it to high-voltage sources.
  • The recommended power-up sequence is to apply the analog supply voltage (VCC) first, followed by the digital supply voltage (VDD). During power-down, reverse the sequence, removing VDD first, then VCC. Ensure that the power supplies are well-regulated and free of noise to prevent damage to the device.
