AD5348BRUZ - Analog Devices

Description: AD5348BRUZ, 12 bit-Bit DAC 8-channel 125ksps, Parallel, 38-Pin TSSOP

Download AD5348BRUZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

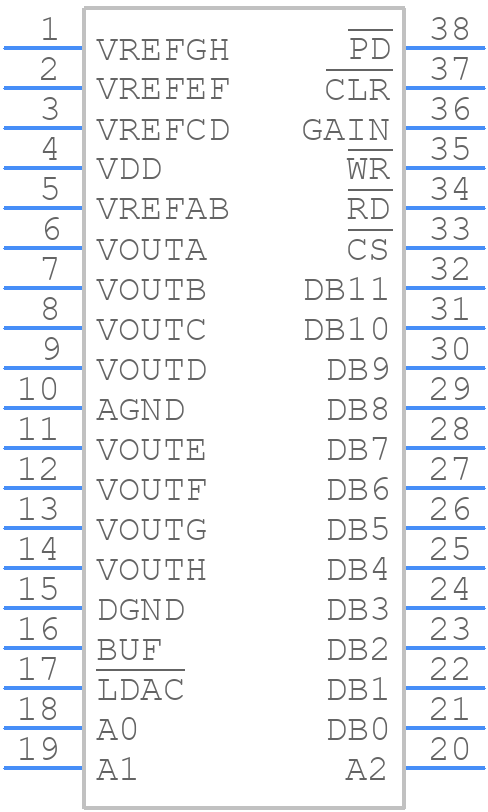

AD5348BRUZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5348BRUZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-38 (TSSOP)
click to zoom
3D Models
AD5348BRUZ - Analog Devices - 3D model - Small Outline Packages - RU-38 (TSSOP)
click to zoom

AD5348BRUZ Details

  • Manufacturer Part Number:

    AD5348BRUZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    MO-153BD-1, TSSOP-38

  • Pin Count:

    38

  • Manufacturer Package Code:

    RU-38

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    5.499 V

  • Analog Output Voltage-Min:

    0.001 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    PARALLEL, WORD

  • JESD-30 Code:

    R-PDSO-G38

  • JESD-609 Code:

    e3

  • Length:

    9.7 mm

  • Linearity Error-Max (EL):

    0.3906%

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    38

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Settling Time-Nom (tstl):

    8 µs

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    4.4 mm

AD5348BRUZ Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the input and output traces short and away from each other. Additionally, use a low-ESR capacitor for the VCC pin and a 0.1uF capacitor for the AVCC pin.
  • The AD5348BRUZ has an internal calibration circuit that can be enabled by tying the CAL pin to VCC. The device will then perform a self-calibration sequence. Additionally, the user can perform an external calibration by applying a known input voltage and adjusting the offset and gain registers accordingly.
  • The maximum input voltage range for the AD5348BRUZ is ±5V. To protect the device from overvoltage conditions, use external voltage limiting resistors or a voltage clamp circuit to limit the input voltage to within the specified range.
  • The AD5348BRUZ has a serial interface that can be connected to a microcontroller or FPGA using a SPI or I2C interface. The device supports both 3-wire and 4-wire SPI modes, as well as I2C mode. The user can select the interface mode by configuring the MODE pin.
  • The power consumption of the AD5348BRUZ is typically 350μA at 5V supply. To reduce power consumption in battery-powered applications, the user can use the device's power-down mode, which reduces the current consumption to 10μA. Additionally, the user can use a lower supply voltage or reduce the clock frequency to further reduce power consumption.
