AD534JH footprint, schematic symbol and 3D model by Analog Devices

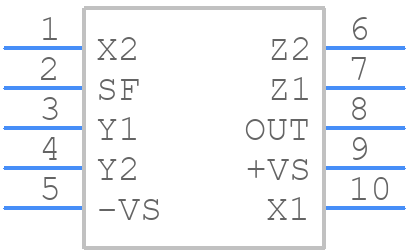

Symbol

click to zoom

PCB Footprints

AD534JH - Analog Devices PCB footprint - Other - Other - 10-Pin Metal Header Package [TO-100] (H-10)

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for AD534JH
Part Number AD534JH
Manufacturer Analog Devices
Pin Count 10
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - 10-Pin Metal Header Package [TO-100] (H-10)
Released Date Aug 16, 2026
Last Modified Date Aug 16, 2026 11:07 AM UTC
Pinout / Pin List Click Here (Member Only)

AD534JH Details

Manufacturer Part Number:
AD534JH
Source Url Status Check Date:
2013-05-01 14:56:12.402
Brand Name:
Analog Devices Inc
Pbfree Code:
No
Part Life Cycle Code:
Obsolete
Part Package Code:
SMT
Package Description:
HERMETIC SEALED, METAL CAN, TO-100, 10 PIN
Pin Count:
10
Manufacturer Package Code:
H-10
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Manufacturer:
Analog Devices Inc
YTEOL:
0
Analog IC - Other Type:
ANALOG MULTIPLIER OR DIVIDER
Bandwidth-Nom:
1 MHz
JESD-30 Code:
O-MBCY-W10
JESD-609 Code:
e0
Neg Supply Voltage-Max (Vsup):
-18 V
Neg Supply Voltage-Min (Vsup):
-8 V
Neg Supply Voltage-Nom (Vsup):
-15 V
Negative Input Voltage-Max:
-10 V
Number of Functions:
1
Number of Terminals:
10
Operating Temperature-Max:
70 °C
Package Body Material:
METAL
Package Code:
TO-100
Package Equivalence Code:
CAN10,.23
Package Shape:
ROUND
Package Style:
CYLINDRICAL
Positive Input Voltage-Max:
10 V
Qualification Status:
Not Qualified
Supply Voltage-Max (Vsup):
18 V
Supply Voltage-Min (Vsup):
8 V
Supply Voltage-Nom (Vsup):
15 V
Surface Mount:
NO
Technology:
BIPOLAR
Temperature Grade:
COMMERCIAL
Terminal Finish:
TIN LEAD
Terminal Form:
WIRE
Terminal Position:
BOTTOM

AD534JH Frequently Asked Questions (FAQs)

The recommended power-up sequence is to apply VCC first, followed by VEE, and then the input signals. This ensures that the internal circuitry is properly biased and minimizes the risk of latch-up or damage.
When using the AD534JH as a voltage follower, the output voltage swing is limited by the supply voltage and the output impedance of the device. To maximize the output voltage swing, ensure that the output is terminated with a low-impedance load, and consider using an output buffer stage if necessary.
The AD534JH's performance is affected by temperature, with changes in offset voltage, gain, and bandwidth. The device is specified to operate over a temperature range of -40°C to +125°C, and the datasheet provides temperature-related specifications and graphs to help designers predict performance.
Yes, the AD534JH can be used as a unity-gain inverter by connecting the output to the inverting input and the input signal to the non-inverting input. However, note that the device's output impedance and bandwidth may affect the performance of the inverter circuit.
To minimize noise and oscillations when using the AD534JH in a high-gain configuration, ensure that the input signal is properly filtered and terminated, and that the device is properly bypassed with capacitors. Additionally, consider using a noise-reducing technique such as resistive feedback or a noise-reducing amplifier stage.

Trust Checks

Expert Contribution

System Verified

Community Approved

AD534JH Overview

Use the download button to access the AD534JH schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like AD534, or try a keyword search, such as Analog Computational Functions

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
