AD5361BSTZ footprint, schematic symbol and 3D model by Analog Devices

Symbol

click to zoom

PCB Footprints

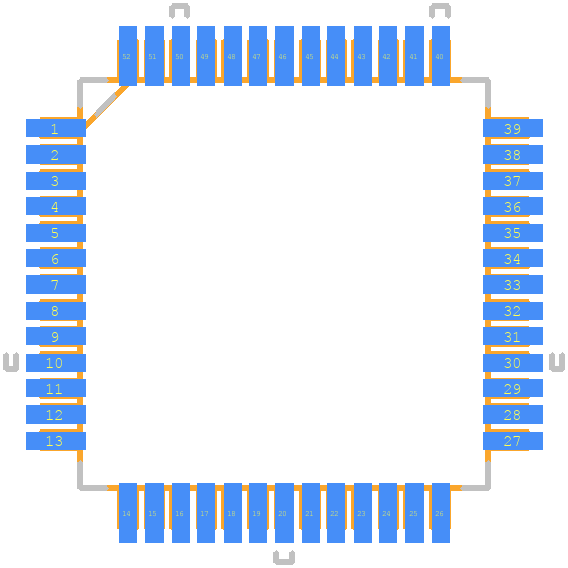

AD5361BSTZ - Analog Devices PCB footprint - Other - Other - QFP65P1200X1200X160-52N

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for AD5361BSTZ
Part Number AD5361BSTZ
Manufacturer Analog Devices
Pin Count 52
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - QFP65P1200X1200X160-52N
Released Date Jan 10, 2017
Last Modified Date Nov 15, 2024 1:35 PM UTC
Pinout / Pin List Click Here (Member Only)

AD5361BSTZ Details

Manufacturer Part Number:
AD5361BSTZ
Brand Name:
Analog Devices Inc
Pbfree Code:
No
Rohs Code:
Yes
Part Life Cycle Code:
Active
Part Package Code:
QFP
Package Description:
ROHS COMPLIANT, MS-026BCC, LQFP-52
Pin Count:
52
Manufacturer Package Code:
ST-52
Country Of Origin:
Philippines
ECCN Code:
EAR99
HTS Code:
8542.39.00.01
Manufacturer:
Analog Devices Inc
YTEOL:
10
Analog Output Voltage-Max:
15.1 V
Analog Output Voltage-Min:
-15.1 V
Converter Type:
D/A CONVERTER
Input Bit Code:
2'S COMPLEMENT BINARY
Input Format:
SERIAL
JESD-30 Code:
S-PQFP-G52
JESD-609 Code:
e3
Length:
10 mm
Linearity Error-Max (EL):
0.0061%
Moisture Sensitivity Level:
3
Negative Supply Voltage-Nom:
-15 V
Number of Bits:
14
Number of Functions:
1
Number of Terminals:
52
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
LQFP
Package Equivalence Code:
QFP52,.47SQ
Package Shape:
SQUARE
Package Style:
FLATPACK, LOW PROFILE
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.6 mm
Settling Time-Max:
30 µs
Settling Time-Nom (tstl):
20 µs
Supply Voltage-Nom:
15 V
Surface Mount:
YES
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
QUAD
Width:
10 mm

AD5361BSTZ Frequently Asked Questions (FAQs)

A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the input and output traces short and away from each other. Additionally, use a low-ESR capacitor for the VDD pin and a 0.1uF capacitor for the AVDD pin.
To optimize performance in high-temperature environments, ensure good thermal management by providing adequate heat sinking and airflow. Also, consider using a thermally conductive material for the PCB and ensure that the device is operated within its specified temperature range.
The recommended power-up sequence is to apply the analog supply voltage (AVDD) first, followed by the digital supply voltage (DVDD), and then the clock signal. This ensures that the analog circuitry is powered up before the digital circuitry.
To troubleshoot issues, first check the power supply voltages and ensure they are within the specified range. Then, verify that the clock signal is correct and that the input signal is within the specified range. Also, check for any noise or interference on the input signal and ensure that the device is properly configured.
The recommended method is to use a low-impedance source, such as an op-amp, to drive the analog input. This ensures that the input signal is not attenuated and that the device can accurately convert the input signal.
