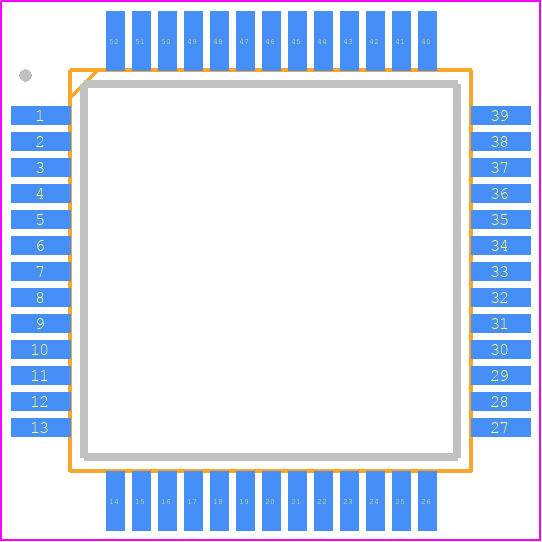

AD5363BSTZ - Analog Devices

AD5363BSTZ Frequently Asked Questions (FAQs)

• What is the recommended layout and routing for the AD5363BSTZ to minimize noise and ensure optimal performance?
  A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the signal traces short and away from noise sources. Also, use a low-ESR capacitor for the AVDD and DVDD pins.
• How do I optimize the performance of the AD5363BSTZ in a system with multiple ADCs?
  To optimize performance in a multi-ADC system, ensure that each ADC has its own separate analog and digital grounds, and use a common mode filter to reduce noise. Also, consider using a clock distribution network to synchronize the ADCs.
• What is the recommended power-up sequence for the AD5363BSTZ to prevent latch-up or damage?
  The recommended power-up sequence is to power up the AVDD pin first, followed by the DVDD pin, and then the digital interface pins. This ensures that the internal analog and digital circuits are powered up in a controlled manner.
• How do I handle the AD5363BSTZ's digital output data in a system with limited processing power?
  To handle the digital output data, consider using a FIFO or a buffer to store the data temporarily, and then process it in bursts. Alternatively, use a DMA controller to offload the data transfer from the processor.
• What is the recommended method for calibrating the AD5363BSTZ to ensure accurate conversions?
  The recommended method is to use the internal calibration feature of the AD5363BSTZ, which can be initiated through the SPI interface. This feature allows the ADC to calibrate its internal offset and gain errors.
