Part Image

AD536AKHZ - Analog Devices

Description: RMS to DC Converter 125V 2000uA 2300kHz 10-Pin TO-100 Tube

Download AD536AKHZ Model

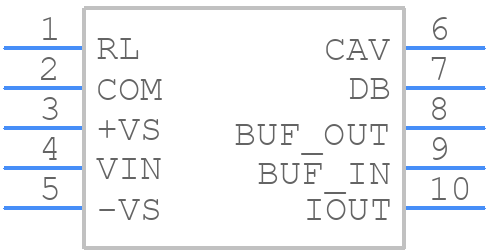

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

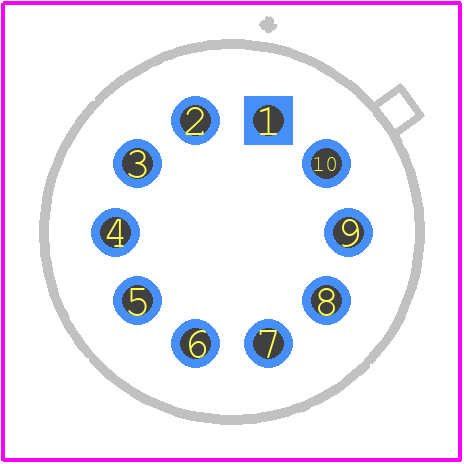

AD536AKHZ - Analog Devices PCB footprint - Other - Other - 10-Pin Metal Header Package [TO-100] (H-10)
click to zoom

AD536AKHZ Details

  • Manufacturer Part Number:

    AD536AKHZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SMT

  • Package Description:

    METAL CAN, TO-100, 10 PIN

  • Pin Count:

    10

  • Manufacturer Package Code:

    H-10-1

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Converter Type:

    RMS TO DC CONVERTER

  • JESD-30 Code:

    O-MBCY-W10

  • JESD-609 Code:

    e4

  • Negative Supply Voltage-Max:

    -18 V

  • Negative Supply Voltage-Min:

    -3 V

  • Negative Supply Voltage-Nom:

    -15 V

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Frequency-Max:

    0.09 MHz

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    METAL

  • Package Code:

    TO-100

  • Package Equivalence Code:

    CAN10,.23

  • Package Shape:

    ROUND

  • Package Style:

    CYLINDRICAL

  • Positive Input Voltage-Max:

    7 V

  • Qualification Status:

    Not Qualified

  • Supply Current-Max:

    2 mA

  • Supply Voltage-Max:

    18 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    15 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Gold (Au)

  • Terminal Form:

    WIRE

  • Terminal Position:

    BOTTOM

  • Total Error-Max:

    0.2%

AD536AKHZ Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply the analog supply voltage (VA) first, followed by the digital supply voltage (VD). This ensures that the analog circuitry is powered up before the digital circuitry.
  • To optimize the layout, keep the analog and digital grounds separate, use a solid ground plane, and keep the analog and digital signal traces separate. Also, place the decoupling capacitors close to the device pins.
  • The AD536AKHZ can handle clock frequencies up to 10 MHz. However, the maximum clock frequency may vary depending on the specific application and the quality of the clock signal.
  • The AD536AKHZ has a self-calibration feature that can be initiated by setting the CAL pin high. The device will then perform a self-calibration sequence to optimize its performance.
  • The typical settling time of the AD536AKHZ is 10 μs to 0.01% of full scale. However, this may vary depending on the specific application and the output load.
