The AD5384BBCZ-5 is a high-speed, high-precision ADC, and its performance can be affected by the PCB layout and component placement. It is recommended to follow a star-grounding scheme, keep analog and digital grounds separate, and use a solid ground plane to minimize noise. Additionally, place the ADC close to the analog signal sources and use short, shielded cables to connect the signals to the ADC.
To optimize the AD5384BBCZ-5's performance, it is essential to understand the specific requirements of your application. Consider factors such as the input signal frequency, amplitude, and noise level, as well as the desired SNR, THD, and SFDR. Adjust the ADC's gain, offset, and clock settings accordingly, and consider using external filters or amplifiers to condition the input signal.
Potential sources of error in the AD5384BBCZ-5 include thermal noise, clock jitter, and non-linearity. To mitigate these errors, ensure proper thermal management, use a high-quality clock source, and calibrate the ADC regularly. Additionally, consider using techniques such as dithering or averaging to reduce the impact of noise and non-linearity.
The AD5384BBCZ-5 has a parallel output interface that can be connected to a microcontroller or FPGA. Ensure that the interface is properly synchronized, and consider using a FIFO or buffer to handle the high-speed data output. Additionally, use a compatible voltage level translator if necessary, and ensure that the interface signals are properly terminated and filtered.
The AD5384BBCZ-5 requires a single 5V power supply, and it is essential to ensure that the power supply is clean, stable, and well-regulated. Use a high-quality voltage regulator, and consider adding decoupling capacitors and filters to reduce noise and ripple. Additionally, ensure that the power supply can provide sufficient current to support the ADC's operating conditions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AD5384BBCZ-5 Overview

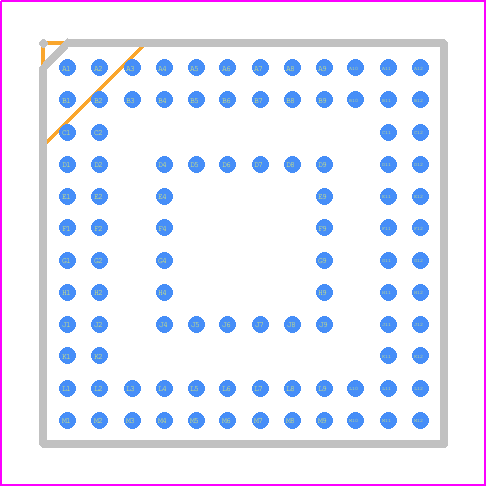

Use the download button to access the AD5384BBCZ-5 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD538,
or try a keyword search, such as Digital to Analog Converters
About Analog Devices
Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries.
Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
