AD539KNZ - Analog Devices

Description: AD539KNZ, Analogue Multipler & Divider 2-Bits 16-Pin PDIP

Download AD539KNZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

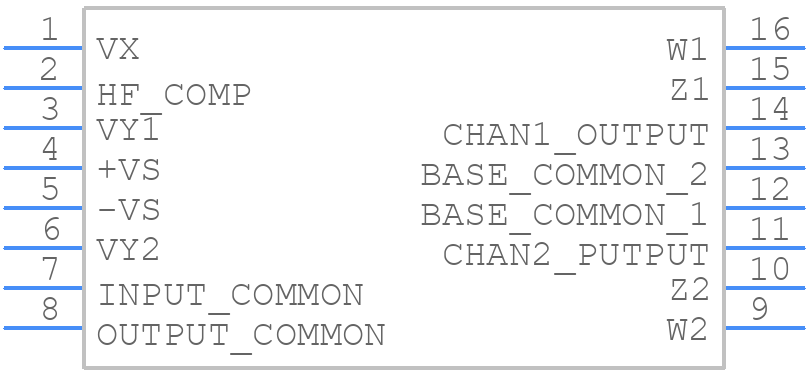

AD539KNZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD539KNZ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N-16
click to zoom
3D Models
AD539KNZ - Analog Devices - 3D model - Dual-In-Line Packages - N-16
click to zoom

AD539KNZ Details

  • Manufacturer Part Number:

    AD539KNZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    DIP

  • Package Description:

    DIP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    N-16

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Analog IC - Other Type:

    ANALOG MULTIPLIER OR DIVIDER

  • Bandwidth-Nom:

    60 MHz

  • JESD-30 Code:

    R-PDIP-T16

  • JESD-609 Code:

    e3

  • Length:

    20.13 mm

  • Neg Supply Voltage-Max (Vsup):

    -15 V

  • Neg Supply Voltage-Min (Vsup):

    -4.5 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Negative Input Voltage-Max:

    -2 V

  • Number of Functions:

    2

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Positive Input Voltage-Max:

    2 V

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.33 mm

  • Supply Current-Max (Isup):

    22.2 mA

  • Supply Voltage-Max (Vsup):

    15 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

AD539KNZ Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the input and output traces short and away from each other. Additionally, use a low-ESR capacitor for decoupling and place it close to the device.
  • Calibration involves adjusting the zero-scale and full-scale outputs to match the desired output range. This can be done using an external calibration circuit or by using the internal calibration feature of the AD539KNZ. Refer to the datasheet for specific calibration procedures.
  • The maximum allowable input voltage range for the AD539KNZ is ±10V. Exceeding this range can cause the device to saturate, leading to inaccurate measurements. It's essential to ensure the input voltage stays within the recommended range to maintain optimal performance.
  • Temperature affects the AD539KNZ's offset voltage, gain, and linearity. The recommended operating temperature range is -40°C to +125°C. It's essential to consider temperature coefficients and compensation techniques to ensure accurate measurements over the desired temperature range.
  • Use a low-ESR capacitor (e.g., 10uF) for decoupling, placed close to the device. Add a series resistor (e.g., 10Ω) and a capacitor (e.g., 100nF) in parallel to filter the power supply. This helps reduce noise and ensures stable operation.
