AD5412AREZ - Analog Devices

Description: Single Channel, 12-Bit, Current Source & Voltage Output DAC, HART Connectivity

Download AD5412AREZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

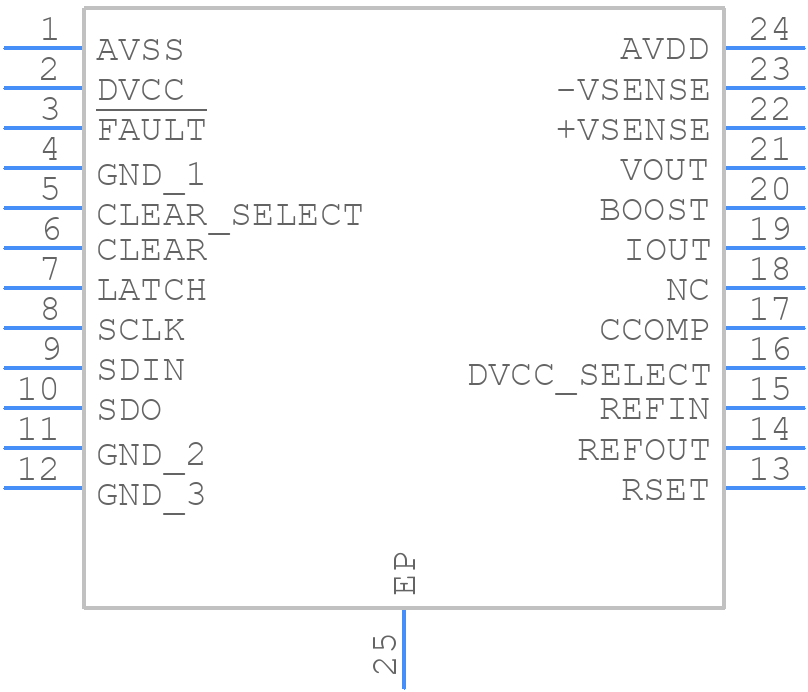

AD5412AREZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5412AREZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RE-24 (TSSOP)
click to zoom
3D Models
AD5412AREZ - Analog Devices - 3D model - Small Outline Packages - RE-24 (TSSOP)
click to zoom

AD5412AREZ Details

  • Manufacturer Part Number:

    AD5412AREZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    RE-24

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    10 V

  • Analog Output Voltage-Min:

    -10 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    7.8 mm

  • Linearity Error-Max (EL):

    0.032%

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP24,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Settling Time-Max:

    25 µs

  • Settling Time-Nom (tstl):

    32 µs

  • Supply Voltage-Nom:

    15 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

AD5412AREZ Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane, separate analog and digital power planes, and careful routing of sensitive analog signals away from digital signals is recommended. Additionally, use of shielding and filtering components can help minimize noise.
  • Consult the datasheet and application notes for specific configuration guidelines. Additionally, Analog Devices provides evaluation boards and software tools to help with configuration and optimization.
  • The AD5412AREZ has a maximum junction temperature of 150°C. Ensure good thermal conductivity between the device and the PCB, use thermal vias, and consider heat sinks or thermal interfaces if necessary. Consult the datasheet for thermal resistance and power dissipation guidelines.
  • Consult the datasheet and application notes for troubleshooting guidelines. Common issues can be caused by incorrect configuration, noise, or thermal issues. Use oscilloscopes and other diagnostic tools to identify and isolate the problem.
  • The AD5412AREZ is designed to meet EMI and RFI standards, but proper PCB layout, shielding, and filtering are still necessary. Consult the datasheet and application notes for guidelines on minimizing emissions and ensuring compliance with regulatory standards such as FCC and CE.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD5412AREZ Overview

Use the download button to access the AD5412AREZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD541, or try a keyword search, such as Digital to Analog Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
