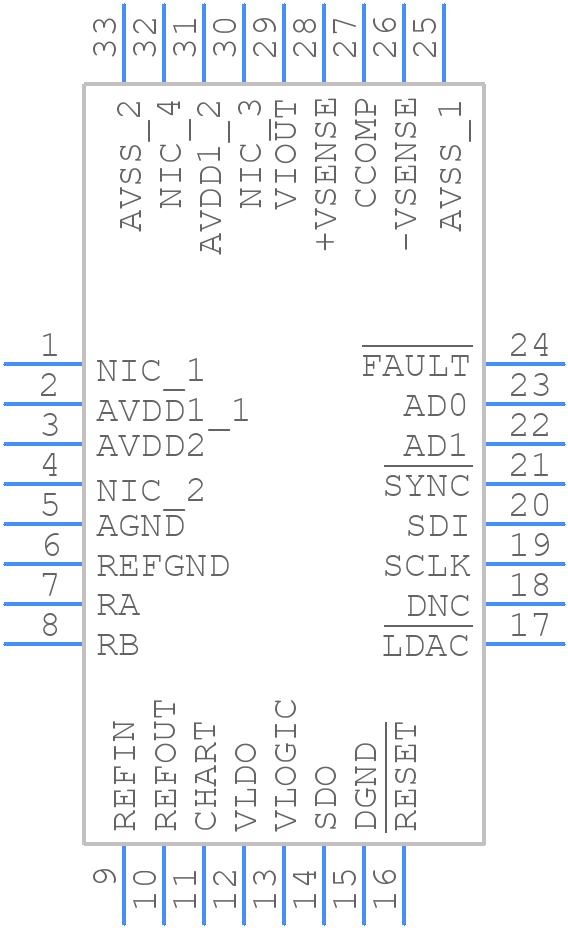

AD5423BCPZ - Analog Devices

AD5423BCPZ Frequently Asked Questions (FAQs)

• What is the recommended layout and routing for the AD5423BCPZ to minimize noise and ensure optimal performance?
  A good layout and routing practice for the AD5423BCPZ involves separating the analog and digital sections, using a solid ground plane, and keeping the analog input and output traces short and away from digital signals. Additionally, it's recommended to use a low-ESR capacitor for the AVCC pin and to decouple the DVCC pin with a 0.1uF capacitor.
• How do I ensure the accuracy and linearity of the AD5423BCPZ over the entire operating temperature range?
  To ensure accuracy and linearity over the entire operating temperature range, it's essential to follow the recommended calibration procedure outlined in the datasheet. Additionally, the device should be operated within the specified temperature range, and the input voltage should be within the recommended range. It's also important to consider the thermal management of the device and the PCB to minimize temperature gradients.
• What is the recommended power-up sequence for the AD5423BCPZ to prevent damage or incorrect operation?
  The recommended power-up sequence for the AD5423BCPZ is to first apply the analog supply voltage (AVCC) and then the digital supply voltage (DVCC). The digital supply voltage should be applied after the analog supply voltage has reached its nominal value. This sequence helps prevent damage or incorrect operation of the device.
• How do I handle the AD5423BCPZ's output current limitation and what are the consequences of exceeding it?
  The AD5423BCPZ has an output current limitation of 20mA. Exceeding this limit can cause the device to overheat, leading to reduced accuracy, linearity, and reliability. To handle the output current limitation, it's essential to ensure that the load impedance is sufficient to keep the output current within the specified limit. Additionally, the device should be operated within the recommended temperature range, and the thermal management of the device and the PCB should be considered.
• What are the EMI and RFI considerations for the AD5423BCPZ, and how can I minimize their impact?
  The AD5423BCPZ is a high-frequency device, and as such, it can be susceptible to EMI and RFI. To minimize their impact, it's essential to use proper shielding, grounding, and filtering techniques. The device should be placed in a shielded enclosure, and the PCB should be designed with EMI and RFI in mind. Additionally, the use of ferrite beads, common-mode chokes, and EMI filters can help to reduce the impact of EMI and RFI.
