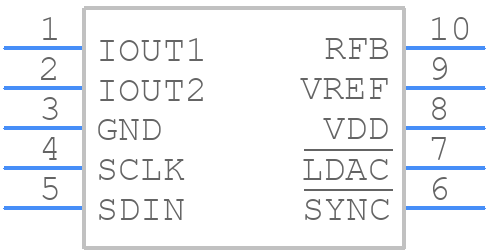

AD5425YRMZ - Analog Devices

AD5425YRMZ Frequently Asked Questions (FAQs)

• What is the recommended layout and routing for the AD5425YRMZ to minimize noise and ensure optimal performance?
  A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the input and output traces short and away from each other. Also, use a low-ESR capacitor for the AVDD and DVDD pins.
• How do I ensure the accuracy of the AD5425YRMZ output voltage?
  To ensure accuracy, use a high-precision voltage reference, such as the ADR4520, and ensure that the input voltage is within the specified range. Also, calibrate the device during production to account for any offset errors.
• What is the maximum output current of the AD5425YRMZ, and how do I ensure it doesn't exceed the maximum rating?
  The maximum output current of the AD5425YRMZ is 10mA. To ensure it doesn't exceed the maximum rating, use a current-limiting resistor in series with the output, and consider using an external buffer amplifier if high output currents are required.
• How do I interface the AD5425YRMZ with a microcontroller or FPGA?
  The AD5425YRMZ has a 16-bit parallel interface. Interface it with a microcontroller or FPGA by connecting the data lines (D0-D15) to the microcontroller's or FPGA's data bus, and the control lines (CS, RD, and WR) to the microcontroller's or FPGA's control signals.
• What is the power-on reset (POR) timing of the AD5425YRMZ, and how does it affect the system design?
  The POR timing of the AD5425YRMZ is approximately 10ms. Ensure that the system design takes into account this timing to avoid any issues during power-up or reset.
