AD5440YRUZ-REEL7 - Analog Devices

Description: Dual 10-Bit, High Bandwidth Multiplying DACs with Parallel Interface

Download AD5440YRUZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

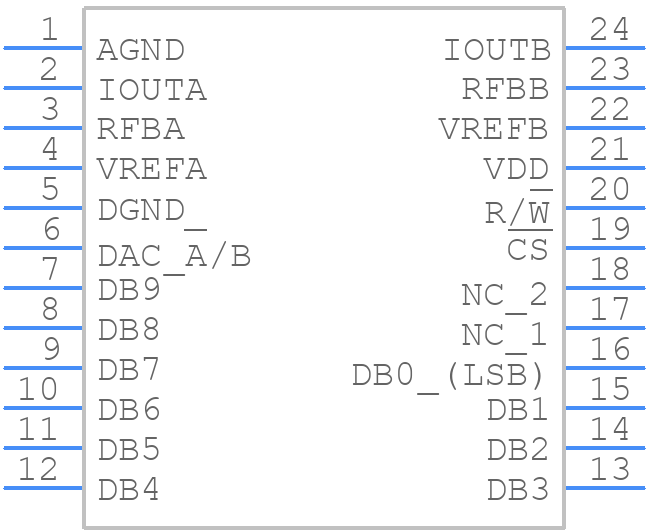

AD5440YRUZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5440YRUZ-REEL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-24
click to zoom
3D Models
AD5440YRUZ-REEL7 - Analog Devices - 3D model - Small Outline Packages - RU-24
click to zoom

AD5440YRUZ-REEL7 Details

  • Manufacturer Part Number:

    AD5440YRUZ-REEL7

  • Source Url Status Check Date:

    2013-05-01 14:56:12.95

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Pin Count:

    24

  • Manufacturer Package Code:

    RU-24

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    PARALLEL, WORD

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    7.8 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP24,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Settling Time-Max:

    0.12 µs

  • Supply Current-Max:

    0.01 mA

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

AD5440YRUZ-REEL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD5440YRUZ-REEL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog power plane and a dedicated digital power plane.
  • To ensure proper calibration, follow the calibration procedure outlined in the datasheet, which involves applying a known input voltage and adjusting the offset and gain trim bits accordingly. It's also recommended to use a high-precision voltage reference and to calibrate the device in the same operating conditions as the final application.
  • The AD5440YRUZ-REEL7 has a maximum junction temperature of 150°C. To ensure reliable operation, it's essential to provide adequate heat sinking, such as using a thermal pad or a heat sink, and to keep the device away from heat sources. Additionally, it's recommended to follow the thermal design guidelines outlined in the datasheet.
  • To troubleshoot issues with the AD5440YRUZ-REEL7, start by verifying the power supply voltage, checking for proper grounding and decoupling, and ensuring that the input voltage is within the specified range. Also, check the output voltage with an oscilloscope to identify any noise or oscillations. If the issue persists, consult the datasheet and application notes for further guidance.
  • To ensure electromagnetic compatibility, follow proper PCB layout and shielding techniques, such as using a metal shield around the device, and keeping the analog and digital circuits separate. Additionally, use EMI filters and shielding on the input and output lines, and ensure that the device is properly grounded.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD5440YRUZ-REEL7 Overview

Use the download button to access the AD5440YRUZ-REEL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD544, or try a keyword search, such as Digital to Analog Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
