AD5440YRUZ - Analog Devices

Description: AD5440YRUZ, 10 bit-Bit DAC Dual, 21.3Msps, Parallel, 24-Pin TSSOP

Download AD5440YRUZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

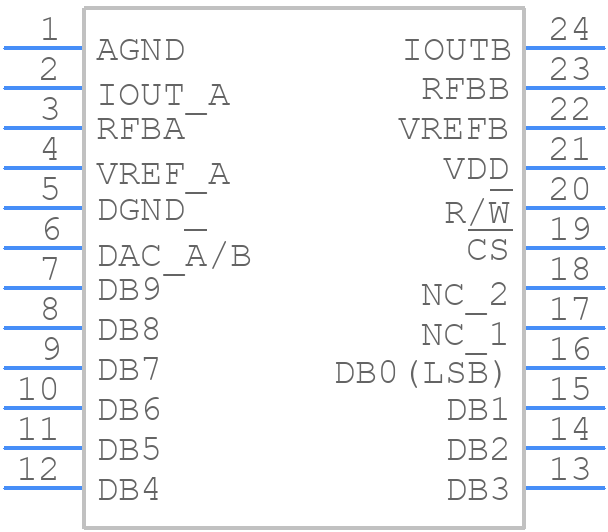

AD5440YRUZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5440YRUZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-24 (TSSOP)
click to zoom
3D Models
AD5440YRUZ - Analog Devices - 3D model - Small Outline Packages - RU-24 (TSSOP)
click to zoom

AD5440YRUZ Details

  • Manufacturer Part Number:

    AD5440YRUZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Pin Count:

    24

  • Manufacturer Package Code:

    RU-24

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    5 V

  • Analog Output Voltage-Min:

    0.4 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    PARALLEL, WORD

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    7.8 mm

  • Linearity Error-Max (EL):

    0.0488%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP24,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Settling Time-Max:

    0.03 µs

  • Settling Time-Nom (tstl):

    0.035 µs

  • Supply Current-Max:

    0.01 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

AD5440YRUZ Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VCC first, followed by AVCC, and then the digital supplies (DVCC and OVCC). This ensures proper device operation and prevents latch-up.
  • To ensure accurate voltage output, it is essential to use a low-noise, low-impedance power supply, and to decouple the power pins (VCC, AVCC, DVCC, and OVCC) with high-quality capacitors. Additionally, ensure that the output voltage is within the specified range, and that the load current is within the recommended limits.
  • The AD5440YRUZ can drive capacitive loads up to 100 nF. However, it is recommended to limit the capacitive load to 10 nF or less to ensure stable operation and to prevent oscillations.
  • The AD5440YRUZ has built-in fault detection and protection features, including overcurrent protection, overvoltage protection, and thermal shutdown. To implement fault detection and protection, connect the FAULT pin to a microcontroller or a dedicated fault detection circuit, and use the fault detection signals to trigger protective actions, such as shutting down the device or alerting the user.
  • To ensure optimal performance and minimize noise, it is recommended to follow a star-grounding layout, with the AD5440YRUZ at the center. Keep the analog and digital grounds separate, and use a solid ground plane to reduce noise and electromagnetic interference (EMI). Additionally, use short, direct traces for the output voltage and current sense lines, and avoid routing them near noisy digital signals.
