AD549LHZ - Analog Devices

Description: Precision Amplifiers ULTRALOW BIAS CURRENT AMP

Download AD549LHZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

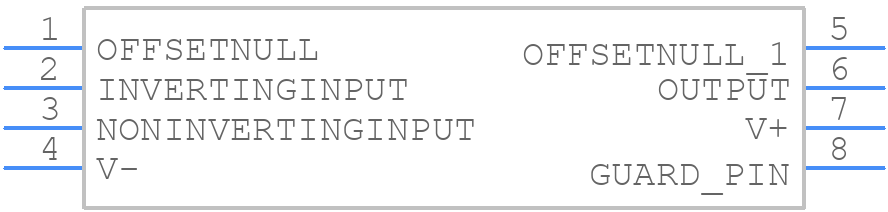

Symbol
AD549LHZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD549LHZ - Analog Devices PCB footprint - Other - Other - 8-Pin Metal Header Package [TO-99] J-Suffix (H-08)
click to zoom

AD549LHZ Details

  • Manufacturer Part Number:

    AD549LHZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    BCY

  • Package Description:

    ROHS COMPLIANT, HERMETIC SEALED, METAL CAN, MO-002AK, TO-99, 8 PIN

  • Pin Count:

    8

  • Manufacturer Package Code:

    H-08-1

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    6e-8 µA

  • Bias Current-Max (IIB) @25C:

    6e-8 µA

  • Common-mode Reject Ratio-Min:

    80 dB

  • Common-mode Reject Ratio-Nom:

    90 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    900 µV

  • JESD-30 Code:

    O-MBCY-W8

  • JESD-609 Code:

    e4

  • Low-Bias:

    YES

  • Low-Offset:

    YES

  • Micropower:

    NO

  • Neg Supply Voltage Limit-Max:

    -18 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    METAL

  • Package Code:

    BCY

  • Package Equivalence Code:

    CAN8,.2

  • Package Shape:

    ROUND

  • Package Style:

    CYLINDRICAL

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Slew Rate-Min:

    2 V/us

  • Slew Rate-Nom:

    3 V/us

  • Supply Current-Max:

    0.7 mA

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Gold (Au)

  • Terminal Form:

    WIRE

  • Terminal Position:

    BOTTOM

  • Unity Gain BW-Nom:

    1000

  • Voltage Gain-Min:

    80000

  • Wideband:

    NO

AD549LHZ Frequently Asked Questions (FAQs)

  • A star-grounding technique is recommended, where the analog and digital grounds are separated and connected at a single point. This helps to reduce noise and electromagnetic interference (EMI). Additionally, it's essential to keep the analog and digital signal traces separate and avoid running them parallel to each other.
  • The AD549LHZ has an internal calibration circuit that allows for self-calibration. To calibrate the device, apply a voltage to the input pins and then toggle the CAL pin high and low. The device will then perform a self-calibration cycle. It's essential to follow the calibration procedure outlined in the datasheet to ensure accurate results.
  • The recommended power-up sequence is to apply the analog power supply (VCC) before the digital power supply (VDD). This ensures that the analog circuitry is powered up before the digital circuitry, which helps to prevent latch-up and ensures proper device operation.
  • The AD549LHZ outputs 16-bit data in a twos-complement format. The output data is available on the D0-D15 pins and is updated on each clock cycle. The output data can be read using a microcontroller or FPGA, and the format can be easily converted to other formats such as decimal or hexadecimal.
  • The maximum clock frequency for the AD549LHZ is 1.5 MHz. Exceeding this frequency can result in reduced accuracy, increased noise, and potential device damage. It's essential to ensure that the clock frequency is within the recommended range to ensure optimal device performance.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD549LHZ Overview

Use the download button to access the AD549LHZ schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like AD549, or try a keyword search, such as Operational Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
