AD5504BRUZ-REEL - Analog Devices

Description: DAC 4-CH Resistor-String 12-bit 16-Pin TSSOP T/R

Download AD5504BRUZ-REEL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

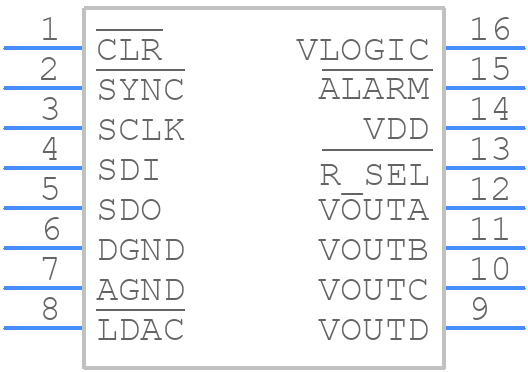

AD5504BRUZ-REEL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5504BRUZ-REEL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-16 (TSSOP)
click to zoom
3D Models
AD5504BRUZ-REEL - Analog Devices - 3D model - Small Outline Packages - RU-16 (TSSOP)
click to zoom

AD5504BRUZ-REEL Details

  • Manufacturer Part Number:

    AD5504BRUZ-REEL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    ROHS COMPLIANT, MO-153AB, TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RU-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    61.5 V

  • Analog Output Voltage-Min:

    0.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.0732%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Settling Time-Max:

    55 µs

  • Settling Time-Nom (tstl):

    25 µs

  • Supply Current-Max:

    3 mA

  • Supply Voltage-Nom:

    30 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

AD5504BRUZ-REEL Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD5504BRUZ-REEL involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing noise coupling between the analog and digital sections. A 4-layer PCB with a dedicated analog ground plane is recommended.
  • To ensure the accuracy of the voltage reference output, it is essential to decouple the VREF pin with a 10uF capacitor to GND, and use a low-noise, low-impedance power supply. Additionally, the VREF pin should be buffered with an op-amp to prevent loading effects.
  • The recommended power-up sequence for the AD5504BRUZ-REEL is to power up the AVDD pin first, followed by the DVDD pin. This ensures that the analog circuitry is powered up before the digital circuitry, which helps to prevent latch-up and ensures proper device operation.
  • To minimize power consumption, it is recommended to use the power-down mode (PD pin) to shut down the device when not in use. Additionally, the clock frequency can be reduced to minimize power consumption. The AD5504BRUZ-REEL also has a low-power mode that can be enabled to reduce power consumption.
  • The AD5504BRUZ-REEL uses a standard SPI interface for communication. The recommended interface protocol involves using a clock frequency of up to 5MHz, with a data transfer rate of 1 byte per clock cycle. The device also supports daisy-chaining of multiple devices.
