AD5516ABC-1 footprint, schematic symbol and 3D model by Analog Devices

Symbol

click to zoom

PCB Footprints

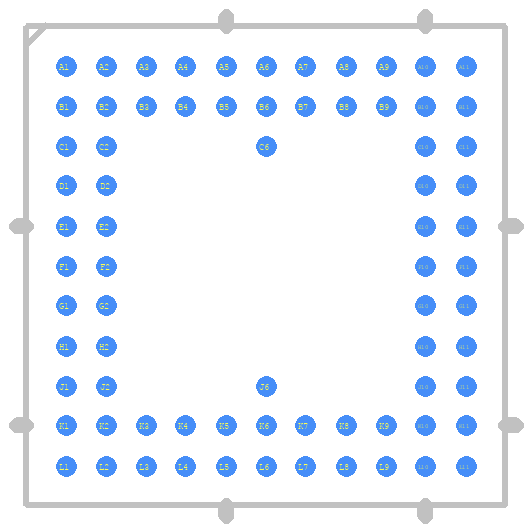

AD5516ABC-1 - Analog Devices PCB footprint - Other - Other - BGA74C100P11X11_1200X1200X170

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for AD5516ABC-1
Part Number AD5516ABC-1
Manufacturer Analog Devices
Pin Count 74
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - BGA74C100P11X11_1200X1200X170
Released Date Jan 10, 2017
Last Modified Date Nov 15, 2024 1:35 PM UTC
Pinout / Pin List Click Here (Member Only)

AD5516ABC-1 Details

Manufacturer Part Number:
AD5516ABC-1
Source Url Status Check Date:
2013-05-01 14:56:13.051
Brand Name:
Analog Devices Inc
Pbfree Code:
No
Part Life Cycle Code:
Obsolete
Part Package Code:
BGA
Package Description:
12 X 12 MM, MO-192ABD-1, CSPBGA-74
Pin Count:
74
Manufacturer Package Code:
BC-74
HTS Code:
8542.39.00.40
Manufacturer:
Analog Devices Inc
YTEOL:
0
Analog Output Voltage-Max:
2.5 V
Analog Output Voltage-Min:
-2.5 V
Converter Type:
D/A CONVERTER
Input Bit Code:
BINARY
Input Format:
SERIAL
JESD-30 Code:
S-PBGA-B74
JESD-609 Code:
e0
Length:
12 mm
Linearity Error-Max (EL):
0.0122%
Moisture Sensitivity Level:
3
Number of Bits:
14
Number of Functions:
1
Number of Terminals:
74
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
LBGA
Package Equivalence Code:
BGA74,11X11,40
Package Shape:
SQUARE
Package Style:
GRID ARRAY, LOW PROFILE
Peak Reflow Temperature (Cel):
240
Qualification Status:
Not Qualified
Seated Height-Max:
1.7 mm
Settling Time-Max:
32 µs
Supply Voltage-Nom:
5 V
Surface Mount:
YES
Technology:
BICMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
TIN LEAD
Terminal Form:
BALL
Terminal Pitch:
1 mm
Terminal Position:
BOTTOM
Width:
12 mm

AD5516ABC-1 Frequently Asked Questions (FAQs)

A good layout and routing practice for the AD5516ABC-1 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog ground layer and a dedicated power layer.
To ensure accuracy and linearity over the entire operating temperature range, it's essential to follow proper calibration and trimming procedures, as outlined in the datasheet. Additionally, using a high-quality voltage reference and ensuring that the device is operated within its specified temperature range can help maintain accuracy and linearity.
The recommended power-up sequence for the AD5516ABC-1 is to first apply the analog power supply (VCC), followed by the digital power supply (VDD), and then the logic inputs. This sequence helps prevent damage or malfunction due to voltage differences between the analog and digital domains.
To handle the AD5516ABC-1's output voltage swing, it's essential to ensure that the output voltage does not exceed the maximum rating of 5.5 V. This can be achieved by using a voltage limiter or a clamp circuit at the output, or by selecting an output voltage range that is within the device's specified limits.
The recommended method for synchronizing the AD5516ABC-1's output with an external clock or signal is to use the device's SYNC input. This input allows the user to synchronize the output with an external clock or signal, ensuring that the output is updated at the desired rate and phase.
