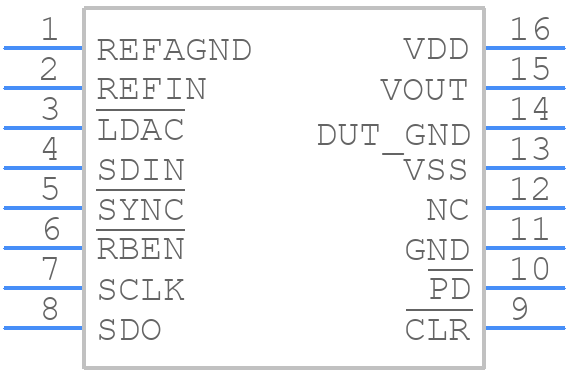

AD5530BRUZ - Analog Devices

AD5530BRUZ Frequently Asked Questions (FAQs)

• What is the recommended layout and routing for the AD5530BRUZ to minimize noise and ensure optimal performance?
  A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the analog and digital signals separate. Also, place the AD5530BRUZ close to the analog signal sources and keep the signal paths as short as possible.
• How do I calibrate the AD5530BRUZ to achieve optimal performance?
  The AD5530BRUZ has a built-in calibration feature. To calibrate, apply a known input voltage to the device, then use the CAL pin to initiate the calibration process. The device will adjust its internal gain and offset to achieve optimal performance.
• What is the recommended power-up sequence for the AD5530BRUZ to prevent damage or malfunction?
  The recommended power-up sequence is to apply the analog power supply (AVDD) first, followed by the digital power supply (DVDD), and then the clock signal. This ensures that the analog circuitry is powered up before the digital circuitry.
• How do I handle the AD5530BRUZ's digital output data to ensure accurate and reliable data transmission?
  The AD5530BRUZ's digital output data should be handled using a FIFO (First-In-First-Out) buffer or a similar data buffering mechanism to ensure that the data is transmitted accurately and reliably. Also, use a suitable communication protocol such as SPI or I2C to transmit the data.
• What are the thermal management considerations for the AD5530BRUZ to prevent overheating and ensure reliability?
  The AD5530BRUZ has a maximum junction temperature of 150°C. To prevent overheating, ensure good airflow around the device, use a heat sink if necessary, and avoid blocking the airflow around the device. Also, follow the recommended PCB layout and thermal design guidelines.
