AD5532ABC-2 - Analog Devices

Description: Analog Devices AD5532ABC-2, 32-Channel Serial DAC, 45ksps, 74-Pin CSPBGA

Download AD5532ABC-2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AD5532ABC-2 - Analog Devices - PCB symbol
click to zoom
PCB Footprints

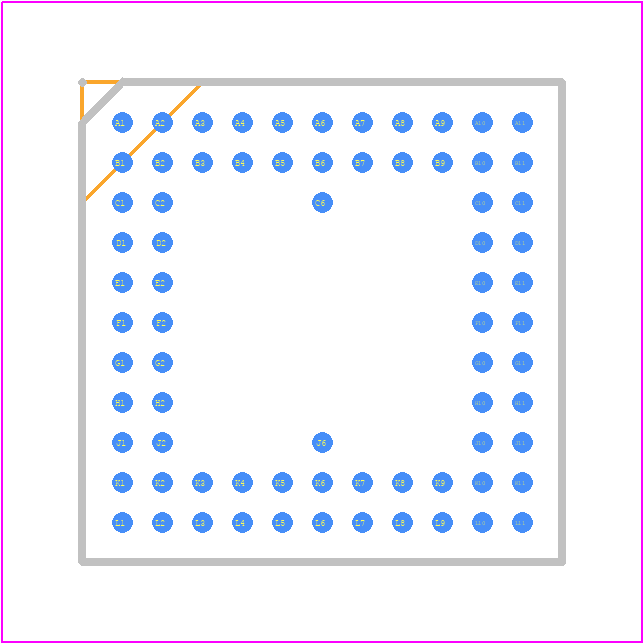

AD5532ABC-2 - Analog Devices PCB footprint - BGA - BGA - BC-74
click to zoom
3D Models
AD5532ABC-2 - Analog Devices - 3D model - BGA - BC-74
click to zoom

AD5532ABC-2 Details

  • Manufacturer Part Number:

    AD5532ABC-2

  • Source Url Status Check Date:

    2013-05-01 14:56:13.123

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    BGA

  • Package Description:

    12 X 12 MM, MO-192ABD-1, CSPBGA-74

  • Pin Count:

    74

  • Manufacturer Package Code:

    BC-74

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Analog Output Voltage-Max:

    14.5 V

  • Analog Output Voltage-Min:

    -14.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PBGA-B74

  • JESD-609 Code:

    e0

  • Length:

    12 mm

  • Linearity Error-Max (EL):

    0.39%

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    14

  • Number of Functions:

    1

  • Number of Terminals:

    74

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LBGA

  • Package Equivalence Code:

    BGA74,11X11,40

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE

  • Peak Reflow Temperature (Cel):

    240

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.7 mm

  • Settling Time-Nom (tstl):

    30 µs

  • Supply Voltage-Nom:

    10 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Width:

    12 mm

AD5532ABC-2 Frequently Asked Questions (FAQs)

  • The recommended layout and routing for the AD5532ABC-2 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it is recommended to use a 4-layer PCB with a dedicated analog layer and a dedicated digital layer.
  • To ensure accurate voltage regulation with the AD5532ABC-2, it is recommended to use a high-quality voltage reference, such as the ADR431, and to decouple the input voltage with a 10uF capacitor. Additionally, the output voltage should be filtered with a 10uF capacitor and a 1kΩ resistor to reduce noise and ripple.
  • The maximum output current of the AD5532ABC-2 is 20mA. However, it is recommended to limit the output current to 10mA to ensure accurate voltage regulation and to prevent overheating.
  • The AD5532ABC-2 can be programmed using a 3-wire serial interface. The device requires a 16-bit data word, which includes 12 bits of data and 4 bits of address. The data is clocked into the device on the rising edge of the clock signal, and the address is latched on the falling edge of the clock signal.
  • The AD5532ABC-2 has a power-on reset feature that initializes the device to a default state when the power supply is turned on. The device resets to a mid-scale output voltage, and the internal registers are cleared. The power-on reset feature can be disabled by tying the POR pin to VCC.
