AD5532ABCZ-1REEL - Analog Devices

Description: Digital to Analog Converters - DAC 32 CHANNEL, 14-BIT DAC & SHA I.C. −0.3 V to +17 V,−40°C to +85°C

Download AD5532ABCZ-1REEL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AD5532ABCZ-1REEL - Analog Devices - PCB symbol
click to zoom
PCB Footprints

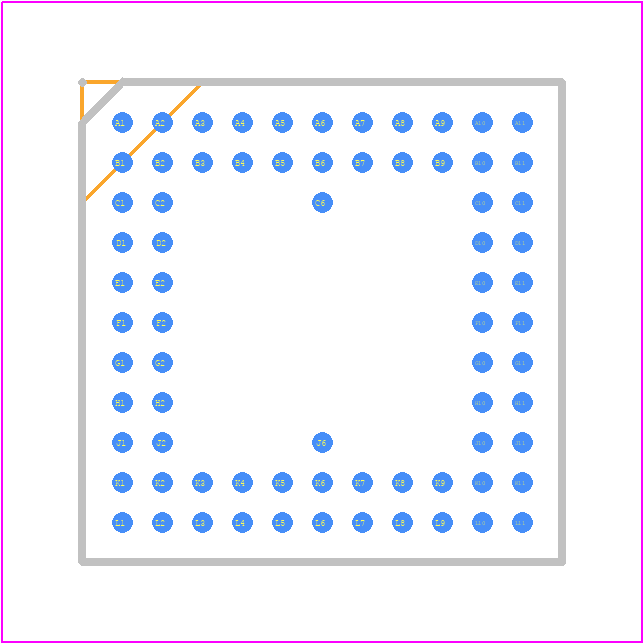

AD5532ABCZ-1REEL - Analog Devices PCB footprint - BGA - BGA - BC-74
click to zoom
3D Models
AD5532ABCZ-1REEL - Analog Devices - 3D model - BGA - BC-74
click to zoom

AD5532ABCZ-1REEL Details

  • Manufacturer Part Number:

    AD5532ABCZ-1REEL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    BGA

  • Package Description:

    12 X 12 MM, ROHS COMPLIANT, MO-192ABD1, CSPBGA-74

  • Pin Count:

    74

  • Manufacturer Package Code:

    BC-74

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    14.5 V

  • Analog Output Voltage-Min:

    -14.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PBGA-B74

  • JESD-609 Code:

    e1

  • Length:

    12 mm

  • Linearity Error-Max (EL):

    0.39%

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    14

  • Number of Functions:

    1

  • Number of Terminals:

    74

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LBGA

  • Package Equivalence Code:

    BGA74,11X11,40

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.7 mm

  • Settling Time-Nom (tstl):

    22 µs

  • Supply Voltage-Nom:

    10 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    12 mm

AD5532ABCZ-1REEL Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD5532ABCZ-1REEL involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing noise coupling between the analog and digital sections. A 4-layer PCB with a dedicated analog ground plane is recommended.
  • To ensure accurate voltage regulation, it's essential to decouple the input voltage with a 10uF capacitor, use a low-ESR output capacitor, and keep the output voltage within the recommended range. Additionally, ensure that the input voltage is within the specified range and that the device is operated within the recommended temperature range.
  • The AD5532ABCZ-1REEL can provide a maximum output current of 25mA per channel. However, it's recommended to limit the output current to 10mA per channel to ensure accurate voltage regulation and to prevent overheating.
  • The AD5532ABCZ-1REEL can be programmed using a microcontroller through a serial interface (SPI or I2C). The microcontroller sends commands and data to the AD5532ABCZ-1REEL, which then configures the DAC outputs accordingly. The datasheet provides detailed information on the serial interface protocol and command structure.
  • The settling time of the AD5532ABCZ-1REEL is typically around 10us, but it can vary depending on the output voltage, load capacitance, and other factors. It's essential to ensure that the output voltage has settled before taking a measurement or using the output voltage in a critical application.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD5532ABCZ-1REEL Overview

Use the download button to access the AD5532ABCZ-1REEL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD553, or try a keyword search, such as Digital to Analog Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
