AD5532ABCZ-2 - Analog Devices

Description: Digital to Analog Converters - DAC 32 CHANNEL, 14-BIT DAC & SHA I.C.

Download AD5532ABCZ-2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AD5532ABCZ-2 - Analog Devices - PCB symbol
click to zoom
PCB Footprints

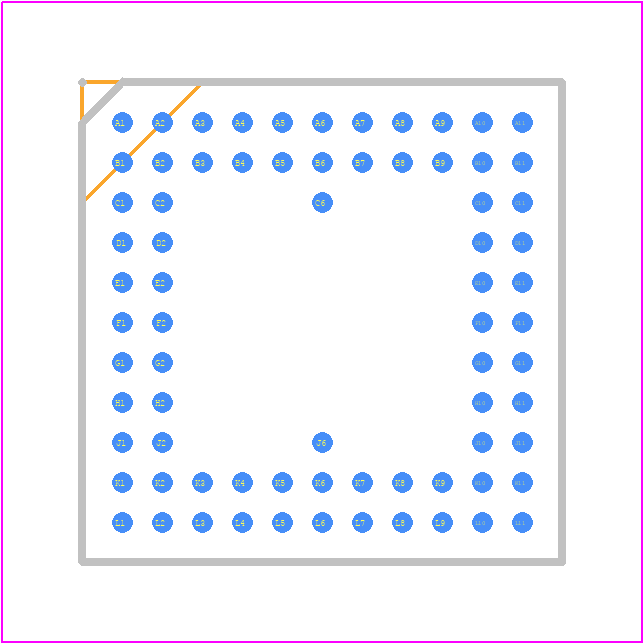

AD5532ABCZ-2 - Analog Devices PCB footprint - BGA - BGA - BC-74A
click to zoom
3D Models
AD5532ABCZ-2 - Analog Devices - 3D model - BGA - BC-74A
click to zoom

AD5532ABCZ-2 Details

  • Manufacturer Part Number:

    AD5532ABCZ-2

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    BGA

  • Package Description:

    12 X 12 MM, ROHS COMPLIANT, MO-192ABD1, CSPBGA-74

  • Pin Count:

    74

  • Manufacturer Package Code:

    BC-74

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    14.5 V

  • Analog Output Voltage-Min:

    -14.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PBGA-B74

  • JESD-609 Code:

    e1

  • Length:

    12 mm

  • Linearity Error-Max (EL):

    0.39%

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    14

  • Number of Functions:

    1

  • Number of Terminals:

    74

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LBGA

  • Package Equivalence Code:

    BGA74,11X11,40

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.7 mm

  • Settling Time-Nom (tstl):

    30 µs

  • Supply Voltage-Nom:

    10 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    12 mm

AD5532ABCZ-2 Frequently Asked Questions (FAQs)

  • The AD5532ABCZ-2 is a high-precision, high-speed converter, and as such, it requires careful layout and placement to minimize noise and ensure optimal performance. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the analog and digital grounds separate, using a solid ground plane, and placing the converter close to the analog signal sources.
  • To prevent EMI, it is recommended to use a low-inductance, high-frequency-capable PCB material, and to keep the digital output traces short and well-shielded. Additionally, using a low-pass filter or a series resistor-capacitor (RC) filter can help to reduce the high-frequency energy and minimize EMI.
  • The recommended power-up sequence for the AD5532ABCZ-2 is to first apply the analog power supply (AVDD), followed by the digital power supply (DVDD), and finally the clock signal. This sequence helps to prevent damage or malfunction due to incorrect power-up sequencing.
  • The AD5532ABCZ-2 has an internal calibration circuit that can be used to calibrate the converter. The calibration process involves applying a known input voltage and adjusting the internal calibration registers to achieve optimal performance and accuracy. The calibration process is typically done during the manufacturing process, but it can also be done in the field using the converter's calibration interface.
  • The recommended operating temperature range for the AD5532ABCZ-2 is -40°C to +85°C. Temperature can affect the converter's performance, including its accuracy, linearity, and noise floor. It is recommended to operate the converter within the specified temperature range to ensure optimal performance and accuracy.
