AD5545BRUZ - Analog Devices

Description: AD5545BRUZ, 16 bit-Bit DAC Dual, 2Msps, SPI, 16-Pin TSSOP

Download AD5545BRUZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

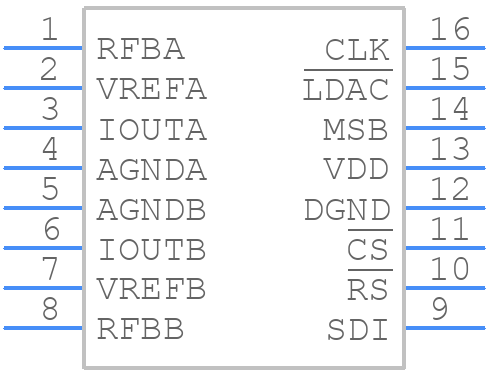

AD5545BRUZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5545BRUZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-16 (TSSOP)
click to zoom
3D Models
AD5545BRUZ - Analog Devices - 3D model - Small Outline Packages - RU-16 (TSSOP)
click to zoom

AD5545BRUZ Details

  • Manufacturer Part Number:

    AD5545BRUZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    ROHS COMPLIANT, MO-153AB, TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RU-16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    15 V

  • Analog Output Voltage-Min:

    -15 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.0031%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Settling Time-Nom (tstl):

    0.5 µs

  • Supply Current-Max:

    0.01 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

AD5545BRUZ Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VCC first, followed by AVCC, and then the digital supplies (DVCC and OVCC). This ensures that the internal voltage regulators are powered up correctly.
  • To ensure accurate voltage output, it is essential to decouple the AVCC and DVCC pins with 0.1 μF capacitors, and use a low-noise, low-dropout voltage regulator for the AVCC supply. Additionally, ensure that the output voltage is within the specified range (0 to VREF) and that the output current does not exceed the maximum rating.
  • The NOISE REDUCE pin is used to reduce the noise on the output voltage. When this pin is tied to AVCC, it enables a noise reduction circuit that reduces the output noise by approximately 10 dB. However, this may also reduce the output bandwidth.
  • Yes, the AD5545BRUZ can be used as a 4-20 mA current source. To do this, connect the output voltage to a resistor, and then connect the resistor to the load. The output current will be proportional to the output voltage. However, ensure that the output current does not exceed the maximum rating.
  • The AD5545BRUZ can be interfaced with a microcontroller using a serial peripheral interface (SPI). The microcontroller can send commands to the AD5545BRUZ to set the output voltage, and can also read back the output voltage and other status information.
