AD5547BRU-REEL7 - Analog Devices

Description: IC DAC 16BIT 2CH TSSOP

Download AD5547BRU-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

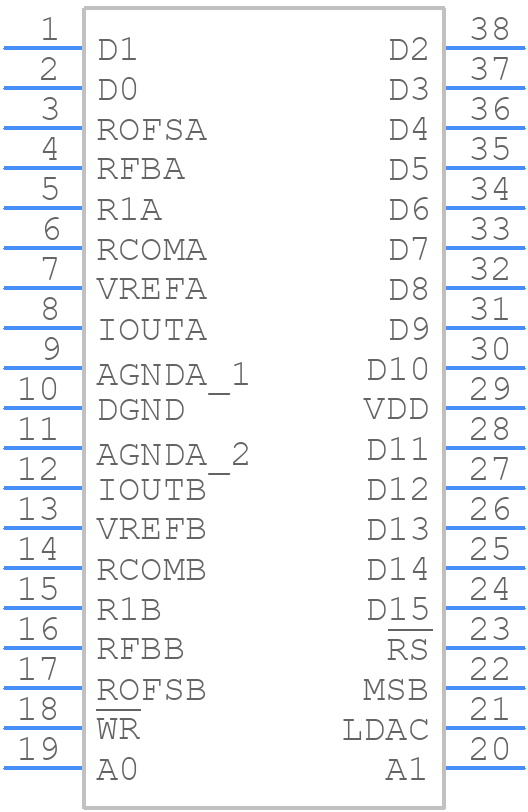

AD5547BRU-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5547BRU-REEL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-38 (TSSOP)
click to zoom
3D Models
AD5547BRU-REEL7 - Analog Devices - 3D model - Small Outline Packages - RU-38 (TSSOP)
click to zoom

AD5547BRU-REEL7 Details

  • Manufacturer Part Number:

    AD5547BRU-REEL7

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Package Description:

    MO-153BD-1, TSSOP-38

  • Pin Count:

    38

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Analog Output Voltage-Max:

    10 V

  • Analog Output Voltage-Min:

    -10 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    PARALLEL, WORD

  • JESD-30 Code:

    R-PDSO-G38

  • JESD-609 Code:

    e0

  • Length:

    9.7 mm

  • Linearity Error-Max (EL):

    0.0031%

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    38

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP38,.25,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Settling Time-Nom (tstl):

    0.5 µs

  • Supply Current-Max:

    0.01 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

AD5547BRU-REEL7 Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by VSS, and then the digital inputs. This ensures that the internal circuitry is properly initialized and prevents any potential latch-up or damage to the device.
  • To ensure accurate voltage output, it is essential to follow proper layout and grounding techniques, use a low-noise power supply, and decouple the power pins with suitable capacitors. Additionally, the output voltage should be buffered with an op-amp if it needs to drive a load.
  • The AD5547BRU-REEL7 can source or sink up to 5 mA of current. However, it is recommended to limit the output current to 2 mA or less to ensure accurate voltage output and prevent overheating.
  • The AD5547BRU-REEL7 can be easily interfaced with a microcontroller using a standard SPI interface. The microcontroller should be configured to operate in SPI mode, and the clock frequency should be set to 20 MHz or less. The CS pin should be driven low to initiate communication, and the data should be clocked in on the rising edge of the clock signal.
  • The thermal shutdown temperature of the AD5547BRU-REEL7 is typically around 150°C. If the junction temperature exceeds this value, the device will shut down to prevent damage. It is essential to ensure proper heat sinking and airflow to prevent overheating.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD5547BRU-REEL7 Overview

Use the download button to access the AD5547BRU-REEL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD554, or try a keyword search, such as Digital to Analog Converters
