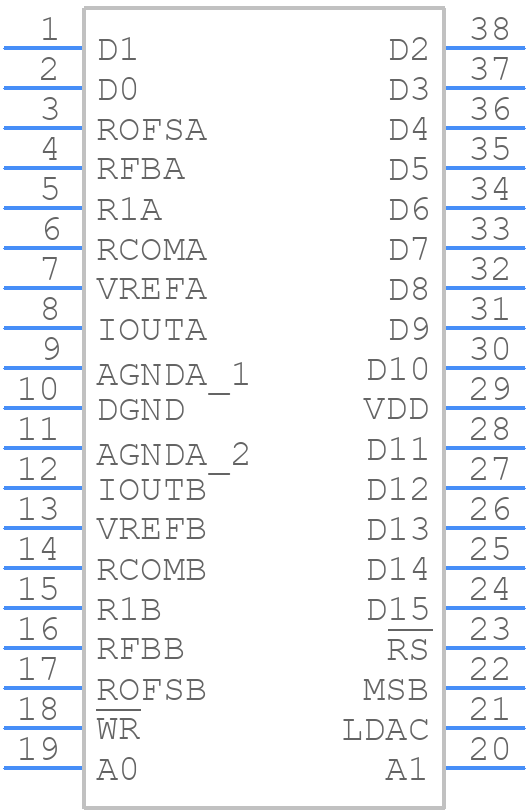

AD5547BRU - Analog Devices

AD5547BRU Frequently Asked Questions (FAQs)

• What is the recommended power-up sequence for the AD5547BRU?
  The recommended power-up sequence is to apply VDD first, followed by VSS, and then the digital inputs. This ensures that the internal circuitry is properly initialized and prevents any potential latch-up or damage to the device.
• How do I ensure accurate voltage output from the AD5547BRU?
  To ensure accurate voltage output, it is essential to use a high-precision voltage reference, such as the ADR431 or ADR434, and to follow proper PCB layout and grounding techniques to minimize noise and interference. Additionally, the output voltage should be buffered with an op-amp, such as the OP1177, to prevent loading effects.
• What is the maximum output current capability of the AD5547BRU?
  The AD5547BRU can source or sink up to 5 mA of current at its output. However, it is recommended to limit the output current to 2 mA or less to ensure accurate voltage output and to prevent overheating of the device.
• How do I interface the AD5547BRU with a microcontroller or FPGA?
  The AD5547BRU can be interfaced with a microcontroller or FPGA using a standard SPI interface. The device requires a clock signal, chip select signal, and data input signal. The microcontroller or FPGA should be configured to operate in SPI mode, and the clock frequency should be set to 20 MHz or less to ensure reliable communication.
• What is the typical settling time of the AD5547BRU?
  The typical settling time of the AD5547BRU is 10 μs to 1 LSB (least significant bit) accuracy. However, this can vary depending on the output voltage, load capacitance, and other factors. It is recommended to consult the datasheet and application notes for more information on settling time and output voltage accuracy.
