AD5553CRMZ - Analog Devices

Description: AD5553CRMZ, 14 bit-Bit DAC 2Msps, SPI, 8-Pin uSOIC

Download AD5553CRMZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

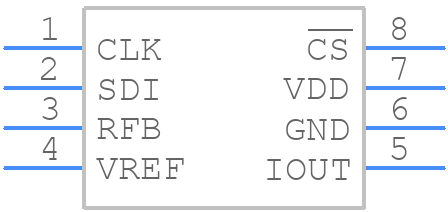

AD5553CRMZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5553CRMZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RM-8 (MSOP)
click to zoom
3D Models
AD5553CRMZ - Analog Devices - 3D model - Small Outline Packages - RM-8 (MSOP)
click to zoom

AD5553CRMZ Details

  • Manufacturer Part Number:

    AD5553CRMZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    3 X 4.70 MM, ROHS COMPLIANT, MO-187AA, MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    RM-8

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0061%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    14

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Settling Time-Nom (tstl):

    0.5 µs

  • Supply Current-Max:

    0.01 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

AD5553CRMZ Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the input and output traces short and away from each other. Additionally, use a low-ESR capacitor for the VDD pin and a 0.1uF capacitor for the AVDD pin.
  • The AD5553CRMZ has an internal calibration circuit that can be enabled by setting the CAL pin high. The device will then perform a self-calibration sequence. It's recommended to perform calibration after power-up and after any changes to the input voltage or temperature.
  • The recommended power-up sequence is to apply the analog supply voltage (AVDD) first, followed by the digital supply voltage (DVDD), and then the input voltage. This ensures that the internal analog circuits are powered up before the digital circuits.
  • The AD5553CRMZ outputs 16-bit data, which can be read through the SPI interface. It's recommended to use a CRC (Cyclic Redundancy Check) to ensure data integrity and to average multiple readings to reduce noise and increase accuracy.
  • The maximum input voltage range for the AD5553CRMZ is 0V to 5.5V. To protect the device from overvoltage, it's recommended to use a voltage limiter or a voltage clamp circuit to prevent voltages above 5.5V from being applied to the input pins.
