AD5554BRSZ - Analog Devices

Description: 2 mA full-scale current ± 20%, with VREF = ±10 V 0.9 μs settling time to ±0.1% 12 MHz multiplying bandwidth Midscale glitch of −1 nV-sec Midscale or zero-scale reset 4 separate, 4-quadrant multiplying reference inputs SPI-compatible, 3-wire interface Double-buffered registers enable Simultaneous multichannel change Internal power-on reset Temperature range: −40°C to +125°C Compact 28-lead SSOP and 32-lead LFCSP

Download AD5554BRSZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

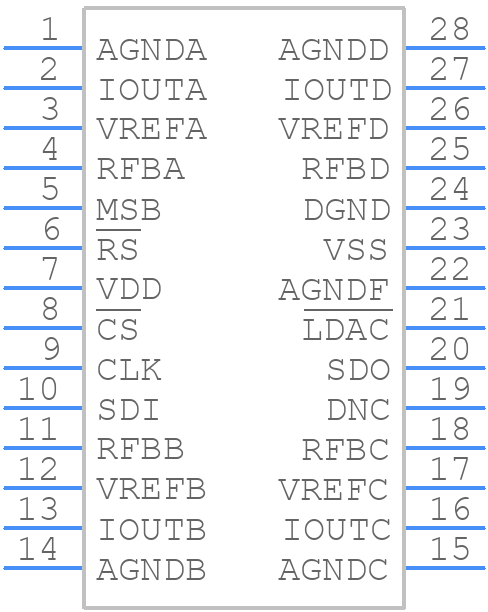

Symbol
AD5554BRSZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5554BRSZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RS-28
click to zoom
3D Models
AD5554BRSZ - Analog Devices - 3D model - Small Outline Packages - RS-28
click to zoom

AD5554BRSZ Details

  • Manufacturer Part Number:

    AD5554BRSZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Package Description:

    ROHS COMPLIANT, MO-150AH, SSOP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    RS-28

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    4 V

  • Analog Output Voltage-Min:

    0.4 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    10.2 mm

  • Linearity Error-Max (EL):

    0.0031%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    14

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP28,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2 mm

  • Settling Time-Nom (tstl):

    0.9 µs

  • Supply Current-Max:

    0.25 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    5.3 mm
