AD5560JSVUZ - Analog Devices

Description: Power Management Specialized - PMIC 1.2A programmable DPS with DACs

Download AD5560JSVUZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AD5560JSVUZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints

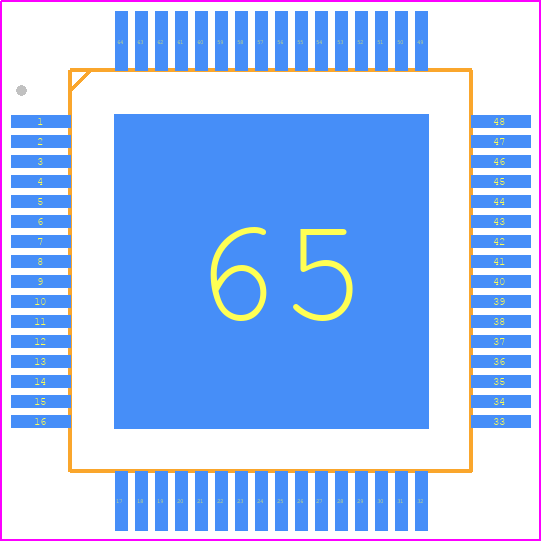

AD5560JSVUZ - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - 64-Lead Thin Quad Flat Package, Exposed Pad [TQFP_EP] (SV-64-3)
click to zoom
3D Models
AD5560JSVUZ - Analog Devices - 3D model - Quad Flat Packages - 64-Lead Thin Quad Flat Package, Exposed Pad [TQFP_EP] (SV-64-3)
click to zoom

AD5560JSVUZ Details

  • Manufacturer Part Number:

    AD5560JSVUZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFP

  • Package Description:

    TQFP-64

  • Pin Count:

    64

  • Manufacturer Package Code:

    SV-64-3

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    25 V

  • Analog Output Voltage-Min:

    -22 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PQFP-G64

  • JESD-609 Code:

    e3

  • Length:

    10 mm

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    64

  • Operating Temperature-Max:

    90 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTFQFP

  • Package Equivalence Code:

    TQFP64,.47SQ

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Settling Time-Max:

    1000 µs

  • Settling Time-Nom (tstl):

    760 µs

  • Supply Current-Max:

    30 mA

  • Supply Voltage-Nom:

    16.5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    10 mm

AD5560JSVUZ Frequently Asked Questions (FAQs)

  • It is recommended to follow a star-grounding scheme, keeping the analog and digital grounds separate, and using a solid ground plane to minimize noise. Place the AD5560JSVUZ close to the analog-to-digital converter (ADC) and use short, shielded cables to connect the two devices.
  • The AD5560JSVUZ has an internal calibration circuit that can be enabled by setting the CAL pin high. The recommended calibration procedure involves applying a known input voltage, enabling calibration, and then reading the output code to determine the gain and offset errors.
  • The AD5560JSVUZ has a maximum junction temperature of 150°C. To ensure reliable operation, it is recommended to provide adequate heat sinking, use a thermally conductive material for the PCB, and avoid exposing the device to extreme temperatures or thermal gradients.
  • The AD5560JSVUZ has a 16-bit parallel digital output. It is recommended to use a 16-bit data bus, and interface the device with a microcontroller or FPGA using a standard protocol such as SPI or I2C.
  • The AD5560JSVUZ is designed to meet the EMC standards for industrial and commercial applications. To ensure compliance, it is recommended to follow proper PCB design practices, use shielding and filtering, and perform EMC testing to ensure the device meets the required standards.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD5560JSVUZ Overview

Use the download button to access the AD5560JSVUZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD556, or try a keyword search, such as Digital to Analog Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
