AD5570ARSZ-REEL7 - Analog Devices

Description: Digital to Analog Converters - DAC IC 16-bit +/-15V Serial

Download AD5570ARSZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

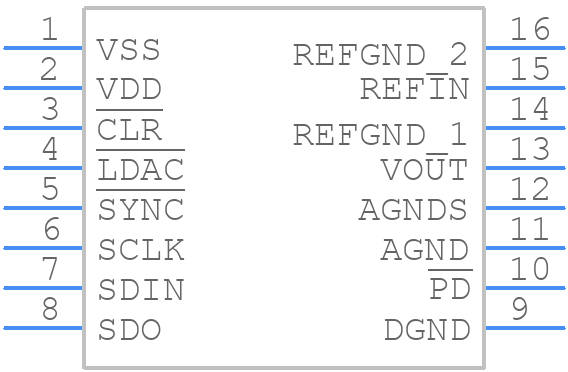

AD5570ARSZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5570ARSZ-REEL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RS-16
click to zoom
3D Models
AD5570ARSZ-REEL7 - Analog Devices - 3D model - Small Outline Packages - RS-16
click to zoom

AD5570ARSZ-REEL7 Details

  • Manufacturer Part Number:

    AD5570ARSZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Package Description:

    ROHS COMPLIANT, PLASTIC, MO-150AC, SSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RS-16

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    14 V

  • Analog Output Voltage-Min:

    -14 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    6.2 mm

  • Linearity Error-Max (EL):

    0.0031%

  • Moisture Sensitivity Level:

    1

  • Negative Supply Voltage-Nom:

    -12 V

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2 mm

  • Settling Time-Max:

    16 µs

  • Settling Time-Nom (tstl):

    12 µs

  • Supply Current-Max:

    5 mA

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.3 mm

AD5570ARSZ-REEL7 Frequently Asked Questions (FAQs)

  • A good layout and routing practice for the AD5570 involves keeping the analog and digital sections separate, using a solid ground plane, and minimizing noise coupling. It's also recommended to use a 4-layer PCB with a dedicated analog ground layer and to keep the analog input traces short and shielded.
  • To ensure accurate temperature measurement, it's essential to calibrate the AD5570 using the on-chip calibration registers. Additionally, the device should be mounted in a way that minimizes thermal gradients, and the temperature sensor should be placed close to the device being measured. It's also recommended to use a thermocouple or other temperature sensor with a high accuracy rating.
  • The maximum cable length for the AD5570's analog output depends on the specific application and the noise environment. However, as a general rule, it's recommended to keep the cable length as short as possible (less than 10 inches) to minimize noise pickup and signal degradation. If a longer cable is required, it's recommended to use a shielded cable and to add noise filtering at the receiving end.
  • The AD5570 is specified to operate from a 2.7V to 5.5V power supply. However, it's recommended to use a 3.3V power supply for optimal performance and to minimize power consumption. Using a 5V power supply may result in increased power consumption and reduced accuracy.
  • To troubleshoot issues with the AD5570's analog output, start by checking the power supply voltage and ensuring that it's within the recommended range. Next, verify that the analog output is properly connected to the ADC or other receiving device. Check for noise or interference on the analog output line and ensure that the output is not overloaded or short-circuited. If the issue persists, consult the datasheet and application notes for further troubleshooting guidance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD5570ARSZ-REEL7 Overview

Use the download button to access the AD5570ARSZ-REEL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD557, or try a keyword search, such as Digital to Analog Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
