AD5570ARSZ - Analog Devices

Description: AD5570ARSZ, 16 bit-Bit DAC 83ksps, SPI, Microwire, 16-Pin SSOP

Download AD5570ARSZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

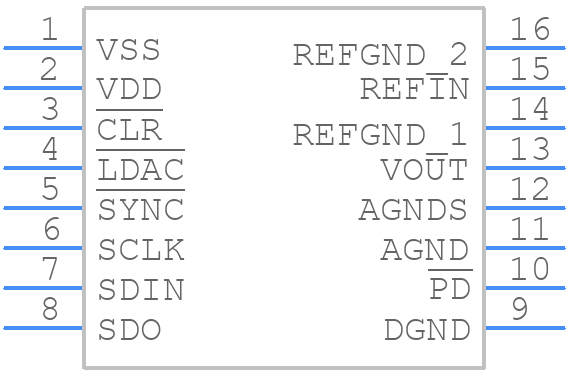

Symbol
AD5570ARSZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5570ARSZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RS-16
click to zoom
3D Models
AD5570ARSZ - Analog Devices - 3D model - Small Outline Packages - RS-16
click to zoom

AD5570ARSZ Details

  • Manufacturer Part Number:

    AD5570ARSZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Package Description:

    ROHS COMPLIANT, PLASTIC, MO-150AC, SSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RS-16

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    14 V

  • Analog Output Voltage-Min:

    -14 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    6.2 mm

  • Linearity Error-Max (EL):

    0.0031%

  • Moisture Sensitivity Level:

    1

  • Negative Supply Voltage-Nom:

    -12 V

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2 mm

  • Settling Time-Max:

    16 µs

  • Settling Time-Nom (tstl):

    12 µs

  • Supply Current-Max:

    5 mA

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.3 mm

AD5570ARSZ Frequently Asked Questions (FAQs)

  • The AD5570ARSZ requires careful layout and placement to minimize noise and ensure optimal performance. It is recommended to place the device close to the analog-to-digital converter (ADC) and to use a ground plane to reduce noise. Additionally, it is recommended to use a 4-layer PCB with a solid ground plane and to route the analog and digital signals on separate layers.
  • The AD5570ARSZ does not require calibration. It is a ratiometric device, meaning that the output voltage is proportional to the input voltage and the reference voltage. However, it is recommended to perform a system calibration to ensure that the overall system is accurate and reliable.
  • The maximum input voltage for the AD5570ARSZ is 5.5V. Exceeding this voltage may damage the device. It is recommended to use a voltage regulator or a voltage limiter to ensure that the input voltage does not exceed the maximum rating.
  • Yes, the AD5570ARSZ can be used with a single-supply voltage. However, it is recommended to use a dual-supply voltage to ensure optimal performance and to minimize noise. If a single-supply voltage is used, it is recommended to use a voltage regulator to generate a negative supply voltage.
  • The typical settling time for the AD5570ARSZ is 10μs. However, this can vary depending on the input signal frequency, amplitude, and the output load. It is recommended to consult the datasheet and to perform simulations to determine the settling time for a specific application.
