AD5570WRSZ - Analog Devices

Description: AD5570WRSZ, 16 bit-Bit DAC 83ksps, SPI, Microwire, 16-Pin SSOP

Download AD5570WRSZ Model

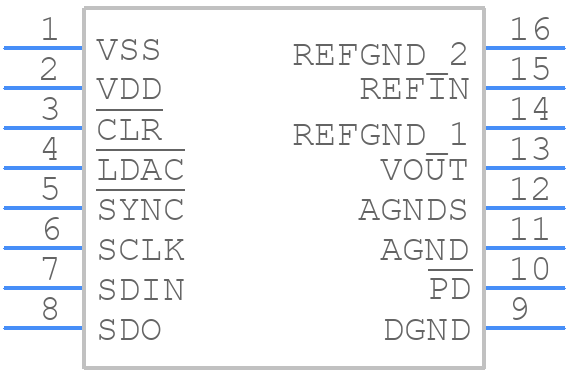

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
AD5570WRSZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RS-16
click to zoom
3D Models
AD5570WRSZ - Analog Devices  - 3D model - Small Outline Packages - RS-16
click to zoom

AD5570WRSZ Details

  • Manufacturer Part Number:

    AD5570WRSZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Package Description:

    ROHS COMPLIANT, PLASTIC, MO-150AC, SSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RS-16

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    14 V

  • Analog Output Voltage-Min:

    -14 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    6.2 mm

  • Linearity Error-Max (EL):

    0.0031%

  • Moisture Sensitivity Level:

    1

  • Negative Supply Voltage-Nom:

    -12 V

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2 mm

  • Settling Time-Max:

    16 µs

  • Settling Time-Nom (tstl):

    12 µs

  • Supply Current-Max:

    5 mA

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.3 mm

AD5570WRSZ Frequently Asked Questions (FAQs)

  • It is recommended to follow a star-grounding scheme, with the AD5570WRSZ placed close to the analog-to-digital converter (ADC) and the analog signal sources. Keep the analog and digital grounds separate and connect them at a single point. Use a solid ground plane and avoid routing digital signals near the analog signals.
  • The AD5570WRSZ has an internal calibration mechanism. To ensure proper calibration, follow the calibration procedure outlined in the datasheet, which involves applying a known input voltage and adjusting the internal calibration registers accordingly. It is also recommended to recalibrate the device periodically to maintain accuracy.
  • The recommended power-up sequence is to first apply the analog power supply (AVDD), followed by the digital power supply (DVDD), and finally the clock signal. This ensures that the internal analog and digital circuits are properly initialized and configured.
  • The AD5570WRSZ has an internal clock that can be synchronized with an external clock source. To handle clock synchronization, use the clock input pin (CLKIN) and ensure that the external clock frequency is within the recommended range (typically 1-40 MHz). The internal clock can also be used as a clock source for other devices in the system.
  • The AD5570WRSZ is a high-performance device that can generate heat during operation. To ensure reliable operation, provide adequate heat sinking and thermal management. Use a heat sink or thermal pad to dissipate heat, and ensure good airflow around the device. Operate the device within the recommended temperature range (-40°C to 125°C) and avoid overheating, which can cause device failure or degradation.
