AD5592RBCPZ-RL7 - Analog Devices

Description: 8-Channel, 12-Bit, Configurable ADC/DAC with On-Chip Reference, SPI Interface

Download AD5592RBCPZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

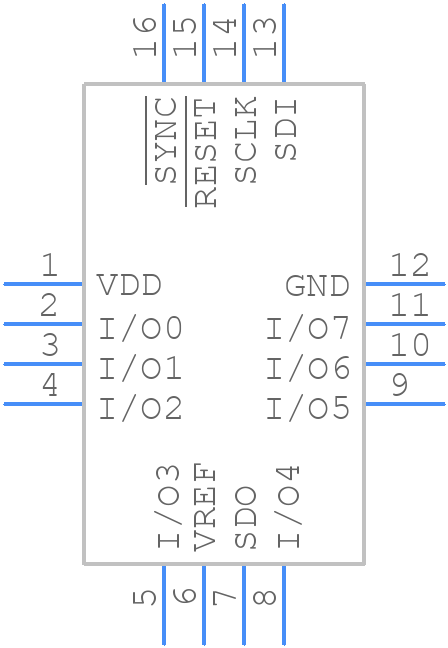

Symbol
AD5592RBCPZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5592RBCPZ-RL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - (CP-16-32)
click to zoom
3D Models
AD5592RBCPZ-RL7 - Analog Devices - 3D model - Quad Flat No-Lead - (CP-16-32)
click to zoom

AD5592RBCPZ-RL7 Details

  • Manufacturer Part Number:

    AD5592RBCPZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-32

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2016-02-25

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    5 V

  • Converter Type:

    DAC 12BIT

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-XQCC-N16

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Settling Time-Nom (tstl):

    6 µs

  • Supply Current-Max:

    2.7 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

AD5592RBCPZ-RL7 Frequently Asked Questions (FAQs)

  • It is recommended to follow a star-grounding scheme, with the AD5592RBCPZ-RL7 placed close to the analog-to-digital converter (ADC) and the analog input signals. Keep the analog and digital grounds separate and connect them at a single point. Use a solid ground plane and avoid routing digital signals near the analog inputs.
  • To ensure accurate calibration, follow the calibration procedure outlined in the datasheet. Use a high-accuracy voltage reference and ensure that the calibration voltage is within the specified range. Also, ensure that the device is in a stable thermal environment and that the power supply is clean and stable.
  • The recommended power-up sequence is to first apply the analog power supply (VCC), followed by the digital power supply (VDD). Ensure that the power supplies are stable and within the specified range before applying the clock signal.
  • The AD5592RBCPZ-RL7 has an internal clock that can be synchronized with an external clock signal. Ensure that the external clock signal is within the specified frequency range and has a stable amplitude. Use the SYNC pin to synchronize the internal clock with the external clock signal.
  • The recommended method is to use a low-impedance source, such as an operational amplifier (op-amp), to drive the analog inputs. Ensure that the op-amp is stable and has a sufficient bandwidth to handle the input signal frequency.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD5592RBCPZ-RL7 Overview

Use the download button to access the AD5592RBCPZ-RL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD559, or try a keyword search, such as Other Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
