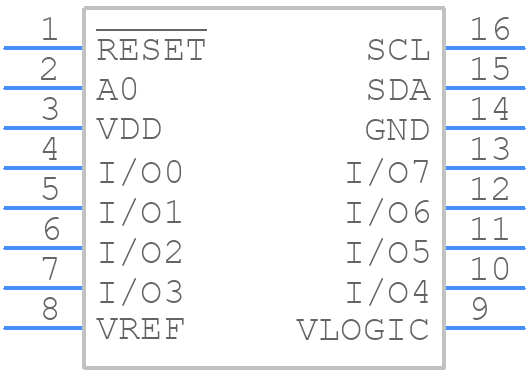

AD5593RBRUZ - Analog Devices

AD5593RBRUZ Frequently Asked Questions (FAQs)

• What is the recommended power-up sequence for the AD5593RBRUZ?
  The recommended power-up sequence is to apply VDD first, followed by VREF, and then the digital interface (e.g., SPI or I2C). This ensures proper device operation and prevents potential latch-up conditions.
• How do I handle the AD5593RBRUZ's internal voltage reference (VREF) when using an external reference?
  When using an external reference, connect the external reference to the VREF pin and disable the internal reference by setting the VREFEN bit in the Configuration Register to 0. This ensures that the internal reference is disabled and the external reference is used instead.
• What is the maximum capacitance I can use on the AD5593RBRUZ's analog inputs?
  The maximum capacitance on the analog inputs depends on the specific application and the desired settling time. As a general guideline, keep the capacitance below 10 nF to ensure proper settling time and to prevent oscillations.
• How do I optimize the AD5593RBRUZ's performance for low-power applications?
  To optimize the AD5593RBRUZ for low-power applications, consider the following: reduce the sampling rate, use the lowest possible voltage reference, disable unused channels, and use the power-down mode when not in use. Additionally, consider using the device's built-in low-power modes, such as the 'Low Power' mode, to reduce power consumption.
• What is the recommended layout and routing for the AD5593RBRUZ's analog and digital signals?
  To ensure optimal performance, keep analog and digital signals separate, use a solid ground plane, and avoid running digital signals near analog signals. Use a star-configuration for the analog inputs and keep the analog input traces as short as possible. Additionally, use a common mode filter or a ferrite bead to filter out high-frequency noise on the analog inputs.
