AD5612ACPZ-2-RL7 - Analog Devices

Description: Digital to Analog Converters - DAC Single 2.7-5.5V 10bit I2C DAC in SC-70

Download AD5612ACPZ-2-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

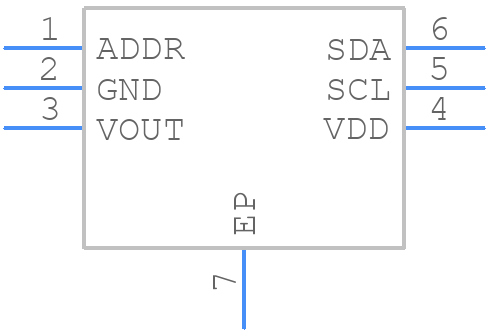

Symbol
AD5612ACPZ-2-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5612ACPZ-2-RL7 - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - 6-Lead Plastic DFN-+
click to zoom
3D Models
AD5612ACPZ-2-RL7 - Analog Devices - 3D model - Small Outline No-lead - 6-Lead Plastic DFN-+
click to zoom

AD5612ACPZ-2-RL7 Details

  • Manufacturer Part Number:

    AD5612ACPZ-2-RL7

  • Source Url Status Check Date:

    2013-05-01 14:56:13.708

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    6

  • Manufacturer Package Code:

    CP-6-5

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    5.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-N6

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.3906%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC6,.1,25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Settling Time-Nom (tstl):

    6 µs

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

AD5612ACPZ-2-RL7 Frequently Asked Questions (FAQs)

  • The recommended layout and routing for the AD5612 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the DAC output and the load. Additionally, it's recommended to use a bypass capacitor between the VDD and GND pins, and to keep the clock signal traces away from the analog signals.
  • To ensure the accuracy and linearity of the AD5612 over temperature, it's recommended to use a high-quality voltage reference, such as the ADR4520, and to calibrate the DAC at multiple temperatures. Additionally, the AD5612 has a built-in temperature sensor that can be used to monitor the die temperature and adjust the output accordingly.
  • The maximum output current of the AD5612 is 10 mA. To ensure that it's not exceeded, it's recommended to use a current-limiting resistor in series with the load, and to monitor the output current using an external current sense resistor and an ADC.
  • The AD5612 can be interfaced with a microcontroller or FPGA using a serial interface, such as SPI or I2C. The specific interface protocol and pin connections will depend on the microcontroller or FPGA being used, and should be consulted in the datasheet for that device.
  • The AD5612 has a power-on reset behavior that initializes the DAC output to 0 V. To ensure a predictable startup sequence, it's recommended to use an external power-on reset circuit, such as a supervisory IC, to control the power-up sequence and ensure that the DAC output is stable before enabling the load.
