AD5612AKSZ-2500RL7 - Analog Devices

Description: ANALOG DEVICES - AD5612AKSZ-2500RL7 - Digital to Analogue Converter, 10 bit, I2C, 2.7V to 5.5V, SC-70, 6 Pins

Download AD5612AKSZ-2500RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

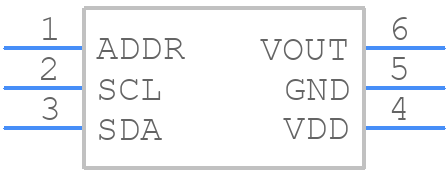

AD5612AKSZ-2500RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5612AKSZ-2500RL7 - Analog Devices PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - KS-6 (SC70)_11
click to zoom
3D Models
AD5612AKSZ-2500RL7 - Analog Devices - 3D model - SOT23 (6-Pin) - KS-6 (SC70)_11
click to zoom

AD5612AKSZ-2500RL7 Details

  • Manufacturer Part Number:

    AD5612AKSZ-2500RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Pin Count:

    6

  • Manufacturer Package Code:

    KS-6

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Output Voltage-Max:

    5.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G6

  • JESD-609 Code:

    e4

  • Length:

    2 mm

  • Linearity Error-Max (EL):

    0.3906%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSSOP

  • Package Equivalence Code:

    TSSOP6,.08

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Settling Time-Max:

    10 µs

  • Settling Time-Nom (tstl):

    6 µs

  • Supply Current-Max:

    0.1 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.25 mm

AD5612AKSZ-2500RL7 Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the AD5612AKSZ-2500RL7 involves keeping the device away from high-frequency noise sources, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it is recommended to use a 4-layer PCB with a dedicated analog ground plane to minimize noise and ensure optimal performance.
  • To ensure accurate voltage output from the AD5612AKSZ-2500RL7, it is essential to follow proper layout and placement guidelines, use a stable and low-noise power supply, and minimize thermal gradients. Key factors that affect accuracy include temperature, power supply voltage, and output load impedance.
  • The recommended power-up sequence for the AD5612AKSZ-2500RL7 involves powering up the device in the following order: VDD, VREF, and then VIN. Improper power-up can result in incorrect output voltage, device damage, or even latch-up.
  • To troubleshoot issues with the AD5612AKSZ-2500RL7, start by checking the power supply, output voltage, and input voltage. Common failure modes include incorrect output voltage, device overheating, and output voltage oscillations. Use an oscilloscope and a multimeter to diagnose the issue, and consult the datasheet and application notes for guidance.
  • Thermal management considerations for the AD5612AKSZ-2500RL7 involve ensuring good airflow, using a heat sink if necessary, and avoiding thermal gradients. To ensure reliable operation over temperature, follow the recommended operating temperature range, use a thermally conductive material for the PCB, and consider using a temperature sensor to monitor the device temperature.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD5612AKSZ-2500RL7 Overview

Use the download button to access the AD5612AKSZ-2500RL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD561, or try a keyword search, such as Digital to Analog Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
