AD5612AKSZ-2REEL7 - Analog Devices

Description: Digital to Analog Converters - DAC 10bit Low V Single Supplys

Download AD5612AKSZ-2REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

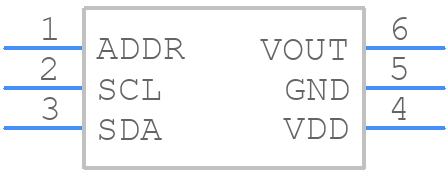

Symbol
AD5612AKSZ-2REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5612AKSZ-2REEL7 - Analog Devices PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - KS-6 (SC70)_11
click to zoom
3D Models
AD5612AKSZ-2REEL7 - Analog Devices - 3D model - SOT23 (6-Pin) - KS-6 (SC70)_11
click to zoom

AD5612AKSZ-2REEL7 Details

  • Manufacturer Part Number:

    AD5612AKSZ-2REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Pin Count:

    6

  • Manufacturer Package Code:

    KS-6

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Output Voltage-Max:

    5.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G6

  • JESD-609 Code:

    e4

  • Length:

    2 mm

  • Linearity Error-Max (EL):

    0.3906%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSSOP

  • Package Equivalence Code:

    TSSOP6,.08

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Settling Time-Max:

    10 µs

  • Settling Time-Nom (tstl):

    6 µs

  • Supply Current-Max:

    0.1 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.25 mm

AD5612AKSZ-2REEL7 Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the AD5612AKSZ-2REEL7 involves keeping the device away from high-frequency noise sources, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog ground plane to minimize noise coupling.
  • To ensure accurate voltage output from the AD5612AKSZ-2REEL7, it's essential to follow proper calibration procedures, use a high-accuracy voltage reference, and consider temperature compensation. Additionally, the device should be operated within its specified temperature range, and thermal management techniques should be employed to minimize self-heating.
  • The maximum output current capability of the AD5612AKSZ-2REEL7 is 25 mA. Exceeding this limit can affect the output voltage accuracy, so it's essential to ensure that the output current is within the specified range. Additionally, the output impedance of the device should be considered when designing the output stage.
  • The AD5612AKSZ-2REEL7 can be interfaced with a microcontroller or digital signal processor using a serial interface such as SPI or I2C. The device requires a clock signal, chip select signal, and data input/output lines. The interface should be designed to ensure proper synchronization and data transfer between the device and the microcontroller or digital signal processor.
  • The AD5612AKSZ-2REEL7 requires a specific power-on and power-off sequencing to ensure proper operation and prevent damage. The recommended sequence is to power on the voltage reference first, followed by the device's power supply, and then the digital interface. During power-off, the sequence should be reversed.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD5612AKSZ-2REEL7 Overview

Use the download button to access the AD5612AKSZ-2REEL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD561, or try a keyword search, such as Digital to Analog Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
