AD561JNZ - Analog Devices

Description: AD561JNZ, 10 bit-Bit DAC Parallel, 16-Pin PDIP

Download AD561JNZ Model

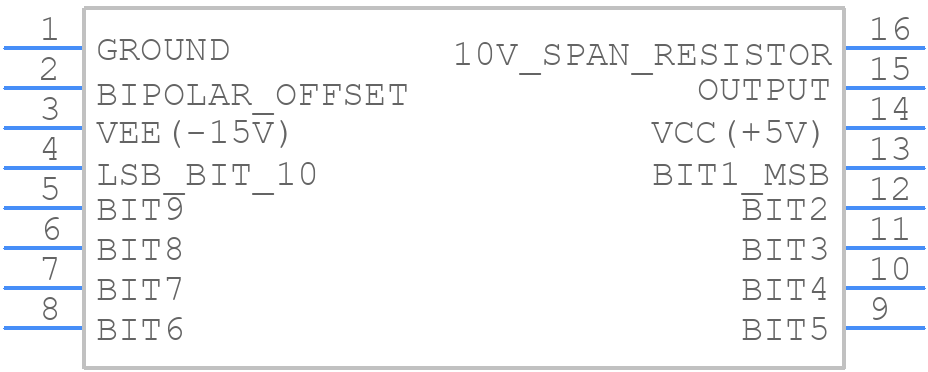

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

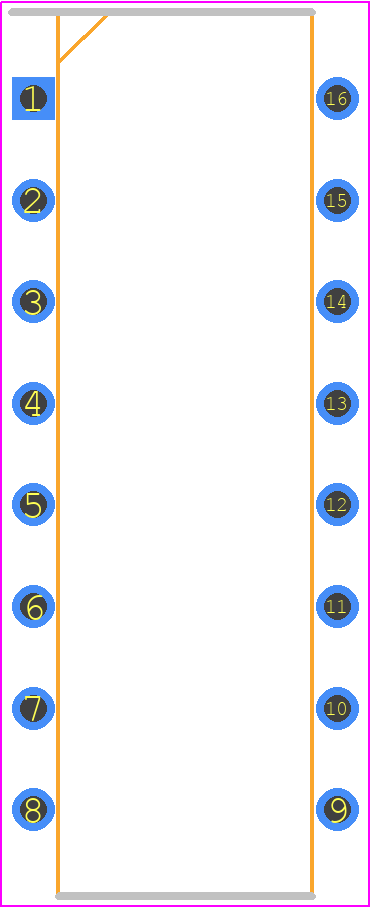

PCB Footprints
AD561JNZ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N-16_4
click to zoom
3D Models
AD561JNZ - Analog Devices  - 3D model - Dual-In-Line Packages - N-16_4
click to zoom

AD561JNZ Details

  • Manufacturer Part Number:

    AD561JNZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    DIP

  • Package Description:

    PLASTIC, DIP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    N-16

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Analog Output Voltage-Max:

    10 V

  • Analog Output Voltage-Min:

    -2 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    PARALLEL, WORD

  • JESD-30 Code:

    R-PDIP-T16

  • JESD-609 Code:

    e3

  • Linearity Error-Max (EL):

    0.05%

  • Negative Supply Voltage-Nom:

    -15 V

  • Number of Bits:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.46 mm

  • Settling Time-Nom (tstl):

    0.25 µs

  • Supply Current-Max:

    16 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

AD561JNZ Frequently Asked Questions (FAQs)

  • It is recommended to follow a star-grounding configuration, with the AD561JNZ placed close to the analog ground plane. Keep the analog and digital grounds separate, and use a single-point ground connection to the analog ground plane. Additionally, place decoupling capacitors close to the device and use a low-ESR capacitor for the VREF pin.
  • To ensure accurate voltage output, it is essential to consider the temperature coefficient of the internal reference voltage (VREF) and the output voltage. Use the temperature coefficient values provided in the datasheet to calculate the output voltage error over temperature. Additionally, consider using an external reference voltage source with a low temperature coefficient to improve accuracy.
  • The recommended power-up sequence is to apply the analog supply voltage (VCC) first, followed by the digital supply voltage (VDD). Ensure that the VCC voltage is stable before applying the VDD voltage. This sequence helps prevent damage to the device and ensures correct operation.
  • The AD561JNZ can be interfaced with a microcontroller or DSP using a standard SPI interface. Ensure that the microcontroller or DSP is configured to operate at a clock frequency that is within the specified range of the AD561JNZ. Additionally, use a suitable buffer or level-shifter if the voltage levels of the microcontroller or DSP are not compatible with the AD561JNZ.
  • The maximum output current that the AD561JNZ can supply is 5 mA. Exceeding this current limit can affect the output voltage accuracy and may cause the device to overheat. Ensure that the output current is within the specified limit to maintain accurate voltage output and prevent device damage.
